| Price View | Price Range |
|---|---|
| Product Group | 448162 |
| End Standard | EN 1092-1 |
| Inspection Standard | EN 12266 |
| Remark | Connection: PN16 |
| Throughput Direction | 3-way |
| Execution | Full Bore |
| Variant | T-port |
| Pressure Rating | PN16 |
| End Type | Flanged |
| Design Code | ISO 17292 |
| Standard | DIN |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea Water, Steam, Thermal oil, Water |
| Size | 100 |
| Material Seat | R-PTFE |
| Material Body | Cast Steel |

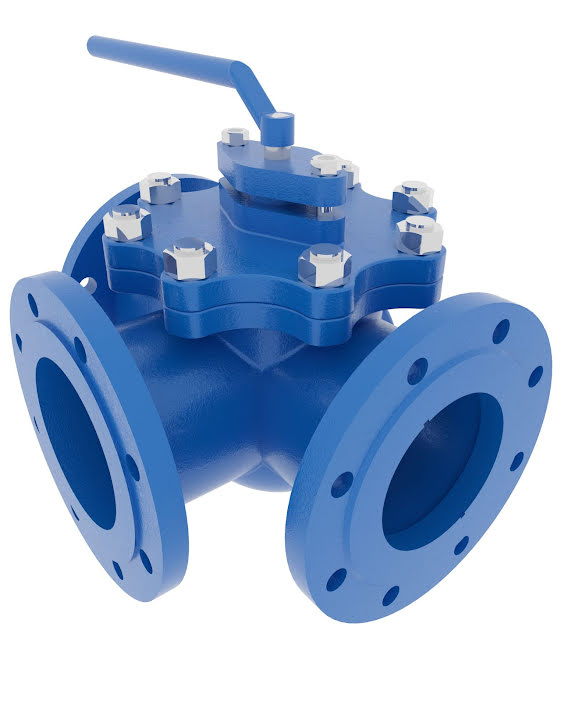

3-way Ball Valve DN100 PN16
3-way type – T-port
Details
3-way, full bore, Cast Steel body ball valve with Stainless Steel ball and PTFE seat. Raised face flanges.

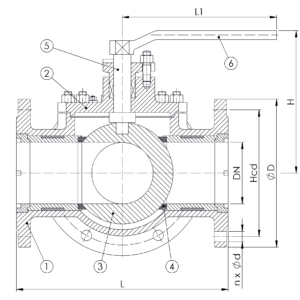

PARTSLIST AND DETAILS
Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Cast Steel | ASTM A216-WCB |
| 2 | Bonnet | Cast Steel | ASTM A216-WCB |
| 3 | Ball | Stainless Steel | ASTM A182-F316 |
| 4 | Seat | RPTFE | |
| 5 | Stem | Stainless Steel | ASTM A276-420 |
| 6 | Handle | Carbon Steel |
Details
| DN | Pressure Rating Id | nxdd | Hcd |
|---|---|---|---|
| 100 | 16 | 8×18 | 180 |
| ØD | L | Kg | L1 | H |
|---|---|---|---|---|
| 220 | 320 | 51 | 500 | 225 |
