| Price View | Price Range |
|---|---|
| Product Group | 442013 |
| End Standard | ISO 228-1 |
| Min temperature | -20°C |
| Max temperature | +100°C |
| Throughput Direction | Straight |
| Execution | Full Bore |
| Pressure Rating | PN40 |
| End Type | Threaded |
| Standard | DIN |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea Water, Steam, Water |
| Size | 8 |
| Material Seat | PTFE |
| Material Body | Brass |

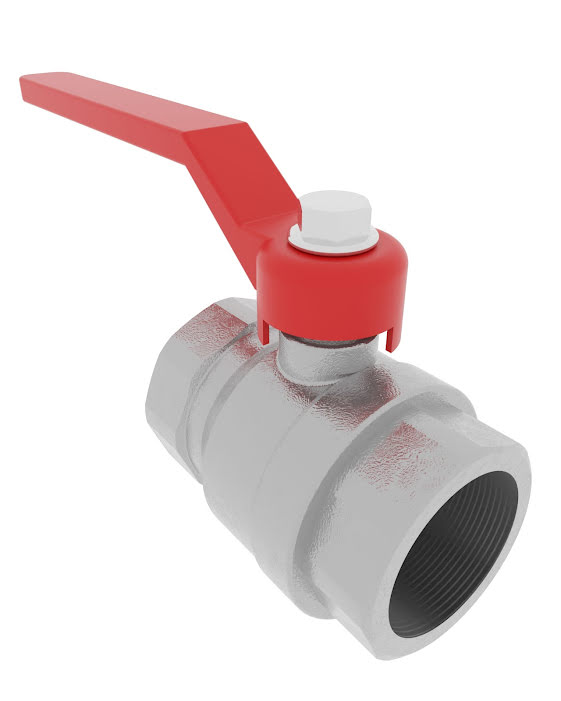

Ball Valve ¼” PN40
Straight type
Details
Two piece, full bore, Brass body ball valve with Hard Chromed Brass ball and PTFE seat. BSPP female threaded ends.

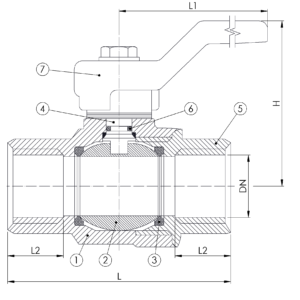

PARTSLIST AND DETAILS
Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Brass | PCuZn40Pb2 |
| 2 | Ball | Brass | PCuZn40Pb2 Chromed |
| 3 | Seat | PTFE | |
| 4 | Stem | Brass | PCuZn40Pb2 |
| 5 | Coupling Sleeve | Brass | PCuZn40Pb2 |
| 6 | O-Ring | NBR | |
| 7 | Handle | Iron | Fe P04 |
Details
| DN | Pressure Rating Id | L | Kg | L1 | Inch | H | L2 |
|---|---|---|---|---|---|---|---|
| 8 | 40 | 47 | 0.1 | 85 | 1/4″ | 40 | 12 |
