| Product Group | 443024 |
| End Standard | ISO 228-1 |
| Min temperature | -10°C |
| Max temperature | +120°C |
| Throughput Direction | Straight |
| Execution | Full Bore |
| Pressure Rating | PN32 |
| End Type | Threaded |
| Standard | DIN |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea Water, Water |
| Size | 40 |
| Material Seat | PTFE |
| Material Body | Bronze |

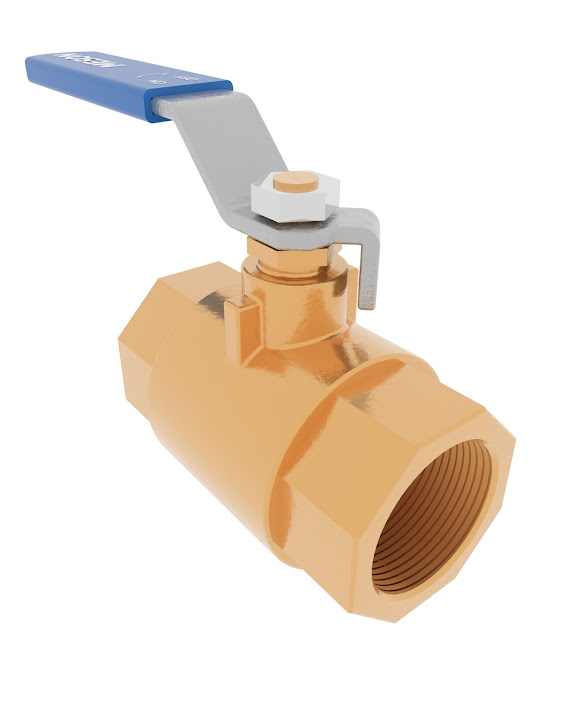

Ball Valve 1 ½” PN32
Straight type – stainless steel handle
Details
Two piece, full bore, RG5 body ball valve with Hard Chromed Brass ball and PTFE seat. BSPP female threaded ends.
PARTSLIST AND DETAILS
Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Bronze | CC 491K |
| 2 | Cap | Bronze | CC 491K |
| 3 | Ball | Brass, Chrome-Plated | CW 617N |
| 4 | Seat | PTFE | |
| 5 | Stem | Brass | CW 617N |
| 6 | Handle | Stainless Steel, Plastic Cover | 1.4016 |
Details
| DN | Pressure Rating Id | L | Kg | L1 | Inch | H |
|---|---|---|---|---|---|---|
| 40 | 32 | 110 | 1.3 | 122 | 1 1/2″ | 77.5 |
