| Price View | Price Range |
|---|---|
| Product Group | 442013 |
| End Standard | ISO 228-1 |
| Min temperature | -20°C |
| Max temperature | +100°C |
| Throughput Direction | Straight |
| Execution | Full Bore |
| Pressure Rating | PN25 |
| End Type | Threaded |
| Standard | DIN |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea Water, Steam, Water |
| Size | 25 |
| Material Seat | PTFE |
| Material Body | Brass |

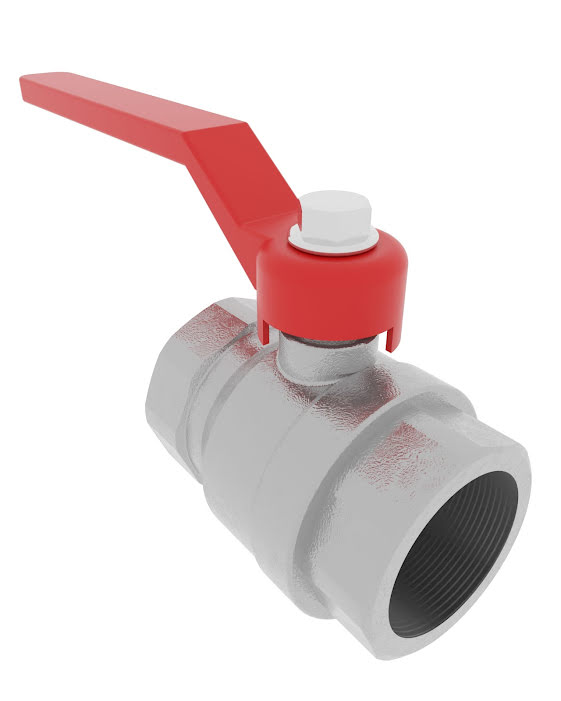

Ball Valve 1″ PN25
Straight type
Details
Two piece, full bore, Brass body ball valve with Hard Chromed Brass ball and PTFE seat. BSPP female threaded ends.

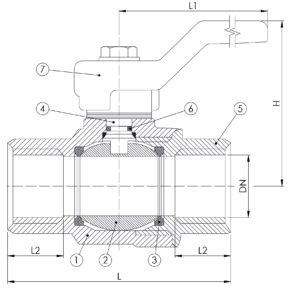

PARTSLIST AND DETAILS
Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Brass | CW617N |
| 2 | Ball | Chromed Brass | – |
| 3 | Seat | PTFE | |
| 4 | Stem | Brass | CW614N |
| 5 | Body End | Brass | CW617N |
| 6 | O-Ring | NBR | |
| 7 | Handle | Iron, Plastic Coated | – |
Details
| DN | Pressure Rating Id | ØD | L |
|---|---|---|---|
| 25 | 25 | 24 | 65.5 |
| Kg | L1 | Inch | H | L2 |
|---|---|---|---|---|
| 0.4 | 110 | 1″ | 60 | 14.5 |
