| Price View | Price Range |
|---|---|
| Product Group | 442013 |
| End Standard | ISO 228-1 |
| Min temperature | -20°C |
| Max temperature | +100°C |
| Throughput Direction | Straight |
| Execution | Full Bore |
| Pressure Rating | PN20 |
| End Type | Threaded |
| Standard | DIN |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea Water, Steam, Water |
| Size | 65 |
| Material Seat | PTFE |
| Material Body | Brass |

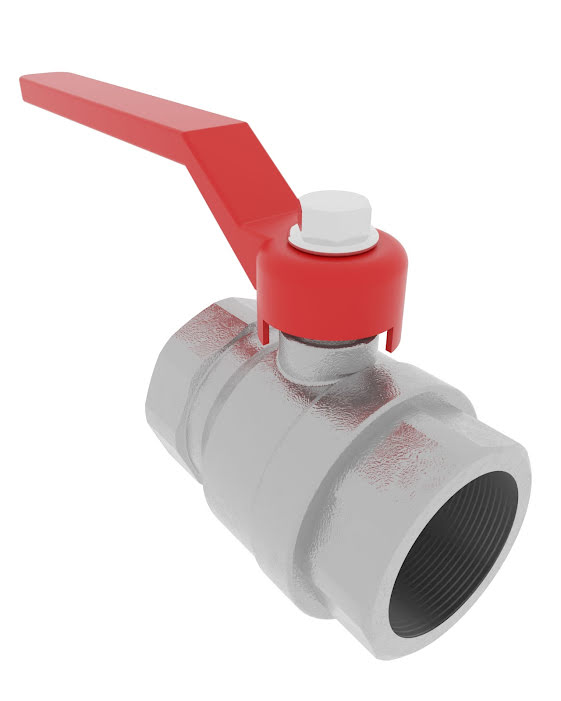

Ball Valve 2 ½” PN20
Straight type
Details
Two piece, full bore, Brass body ball valve with Hard Chromed Brass ball and PTFE seat. BSPP female threaded ends.

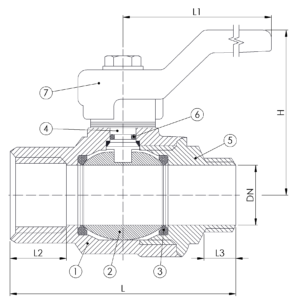

PARTSLIST AND DETAILS
Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Brass | CW617N |
| 2 | Ball | Chromed Brass | – |
| 3 | Seat | PTFE | |
| 4 | Stem | Brass | CW614N |
| 5 | Body End | Brass | CW617N |
| 6 | O-Ring | NBR | |
| 7 | Handle | Iron, Plastic Coated | – |
Details
| DN | Pressure Rating Id | ØD | L |
|---|---|---|---|
| 65 | 20 | 65 | 135 |
| Kg | L1 | Inch | H | L2 |
|---|---|---|---|---|
| 3 | 210 | 2 1/2″ | 120 | 23 |
