| Price View | Price Range |
|---|---|
| Product Group | 442095 |
| End Standard | EN 10226-1 |
| Inspection Standard | API 598 |
| Min temperature | -10°C |
| Max temperature | +150°C |
| Throughput Direction | Straight |
| Execution | Full Bore |
| Pressure Rating | 1000WOG |
| End Type | Threaded |
| Design Code | EN 12516-2 |
| Standard | DIN |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea Water, Water |
| Size | 50 |
| Material Seat | PTFE |
| Material Body | Stainless Steel, 316 |

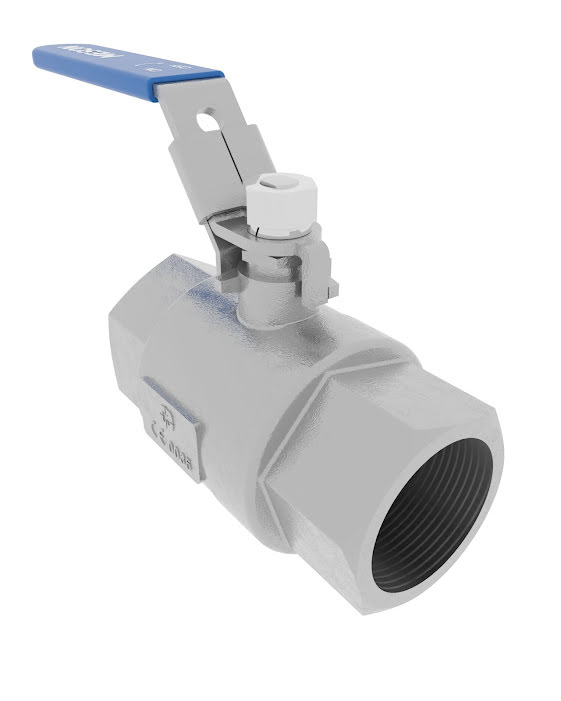

Ball Valve 2″ 1000WOG
Straight type
Details
Two piece, full bore, Stainless Steel body ball valve with Stainless Steel ball and PTFE seat. BSPP female threaded ends.

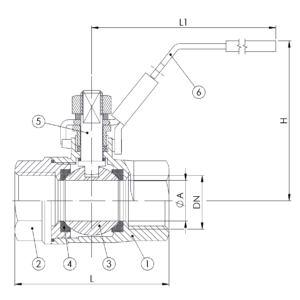

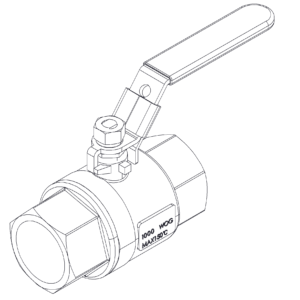

PARTSLIST AND DETAILS
Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Stainless Steel | CF8M |
| 2 | Cap | Stainless Steel | CF8M |
| 3 | Ball | Stainless Steel | CF8M |
| 4 | Seat | PTFE | |
| 5 | Stem | Stainless Steel | 316 |
| 6 | Handle | Stainless Steel, Plastic Cover | 304 |
Details
| DN | Pressure Rating Id | L | Kg | L1 | Inch | H | Ø A |
|---|---|---|---|---|---|---|---|
| 50 | 1000 | 124 | 2.7 | 155 | 2″ | 108 | 50 |
