| Price View | Price Range |
|---|---|
| Product Group | 448395 |
| End Standard | ISO 228-1 |
| Inspection Standard | API 598 |
| Min temperature | -25°C |
| Top Flange Standard | ISO 5211 – F07/F10 |
| Max temperature | +230°C |
| Throughput Direction | 3-way |
| Execution | Full Bore |
| Variant | L-port |
| Pressure Rating | 800WOG |
| End Type | Threaded |
| Design Code | ASME B16.34 |
| Standard | DIN |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea Water, Water |
| Size | 50 |
| Material Seat | R-PTFE |
| Material Body | Stainless Steel, 316 |

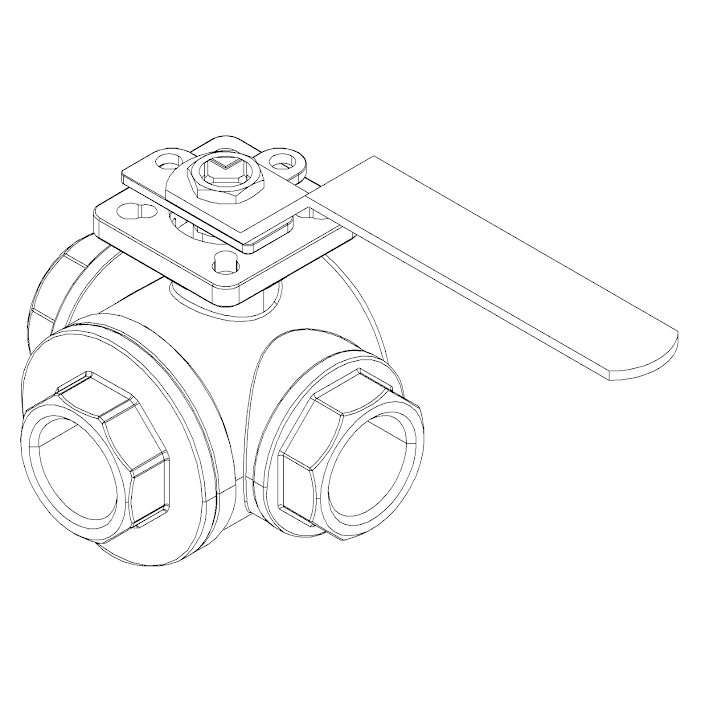

Ball Valve 2″ 800WOG
3-way type – L-port – with direct mouting pad
Details
3-way, full bore, Stainless Steel body ball valve with Stainless Steel ball and RPTFE seat. BSPP female threaded ends. With direct mounting pad.

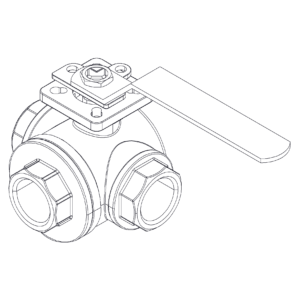

PARTSLIST AND DETAILS

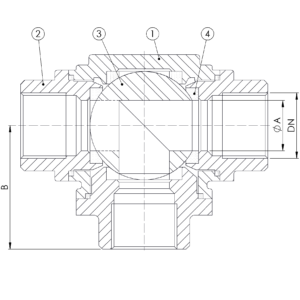

Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Stainless Steel | A351 Gr. CF8M |
| 2 | Cap | Stainless Steel | A351 Gr. CF8M |
| 3 | Ball | Stainless Steel | SS 316 |
| 4 | Seat | RPTFE | |
| 5 | Stem | Stainless Steel | SS 316 |
| 6 | Handle | Stainless Steel, Vinyl Cover | SS 304 |

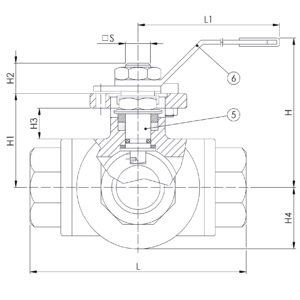

Details
| DN | Pressure Rating Id | L | L1 | Inch | H |
|---|---|---|---|---|---|
| 50 | 800 | 174 | 325 | 2″ | 140 |
| H1 | ØA | B | H2 | S | H4 | H3 |
|---|---|---|---|---|---|---|
| 93 | 50 | 87 | 22 | 17 | 60 | 24.2 |
