| Product Group | 440665 |
| Top Flange Standard | ISO 5211 – F10 non-direct |
| Throughput Direction | Straight |
| Execution | Full Bore |
| Pressure Rating | 1000WOG |
| End Type | Butt welded, long |
| Standard | DIN |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea Water, Steam, Thermal oil, Water |
| Size | 100 |
| Material Seat | PTFE |
| Material Body | Cast Steel |

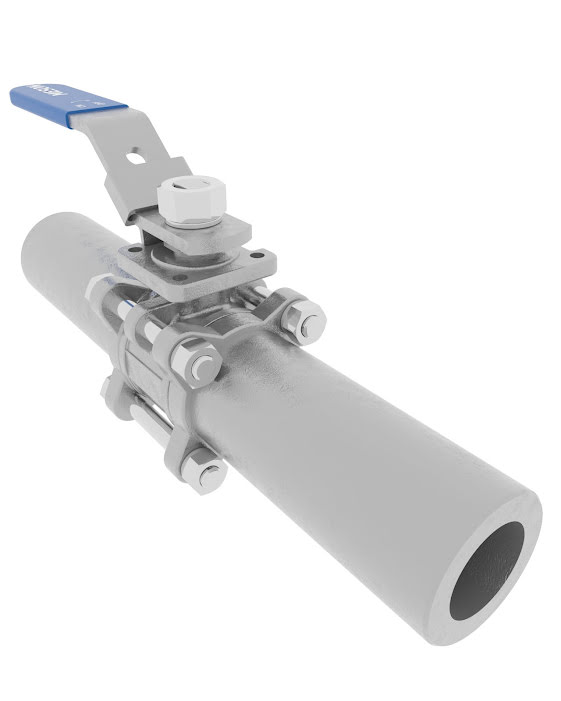

Ball Valve 4″ 1000WOG
Straight type
Details
Three piece, full bore, Cast Steel body ball valve with Stainless Steel ball and PTFE seat. Long butt welded ends. With non-direct mounting pad.

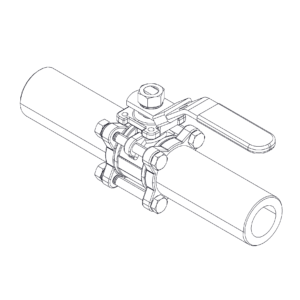

PARTSLIST AND DETAILS

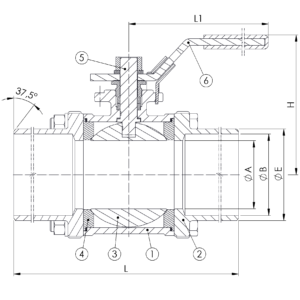

Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Cast Steel | ASTM A216-WCB |
| 2 | Cap | Cast Steel | ASTM A216-WCB |
| 3 | Ball | Stainless Steel | ASTM A351-CF8 |
| 4 | Seat | PTFE | |
| 5 | Stem | Stainless Steel | AISI 316 |
| 6 | Handle | Stainless Steel, Plastic Cover | AISI 304 |
Details
| DN | Pressure Rating Id | L | Kg |
|---|---|---|---|
| 100 | 1000 | 365 | 23.8 |
| L1 | H | ØA | ØE | ØB |
|---|---|---|---|---|
| 295 | 177 | 100 | 115 | 100 |
