| Price View | Price Range |
|---|---|
| Product Group | 445192 |
| End Standard | DIN 2633 |
| Face To Face Standard | EN 558, series 15 |
| Inspection Standard | EN 12266 |
| Remark | Connection: PN16 |
| Top Flange Standard | ISO 5211 – F10/F12 |
| Throughput Direction | Straight |
| Execution | Full Bore |
| Pressure Rating | PN16 |
| End Type | Flanged |
| Design Code | ASME B16.34 |
| Standard | DIN |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea Water, Water |
| Size | 150 |
| Material Seat | PTFE |
| Material Body | Stainless Steel, 316 |

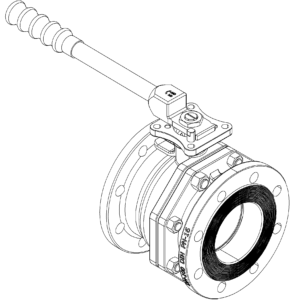

Ball Valve DN150 PN16
Straight type – with direct mounting pad
Details
Two piece, full bore, Stainless Steel body ball valve with Stainless Steel ball and PTFE seat. Raised face flanges. With direct mounting pad.
PARTSLIST AND DETAILS

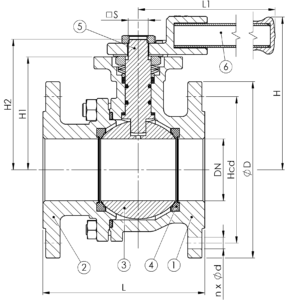

Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Stainless Steel | ASTM A351-CF8M |
| 2 | Cap | Stainless Steel | ASTM A351-CF8M |
| 3 | Ball | Stainless Steel | ASTM A351-CF8M |
| 4 | Seat | PTFE | |
| 5 | Stem | Stainless Steel | AISI 316 |
| 6 | Handle | Stainless Steel, Plastic Cover | AISI 430 |
Details
| DN | Pressure Rating Id | nxdd | Hcd |
|---|---|---|---|
| 150 | 16 | 8×22 | 240 |
| Ø D | L | Kg | L1 | H | H1 | H2 | S |
|---|---|---|---|---|---|---|---|
| 285 | 350 | 65.5 | 415 | 215 | 175 | 222 | 27 |
