| Price View | Price Range |
|---|---|
| Product Group | 446152 |
| End Standard | EN 1092-2 |
| Inspection Standard | EN 12266 |
| Remark | Connection: PN16 |
| Min temperature | -10°C |
| Top Flange Standard | ISO 5211 – F04 non-direct |
| Max temperature | +100°C |
| Throughput Direction | Straight |
| Execution | Full Bore |
| Pressure Rating | PN16 |
| End Type | Flanged |
| Design Code | EN 1983 |
| Standard | DIN |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea Water, Water |
| Size | 20 |
| Material Seat | CPTFE |

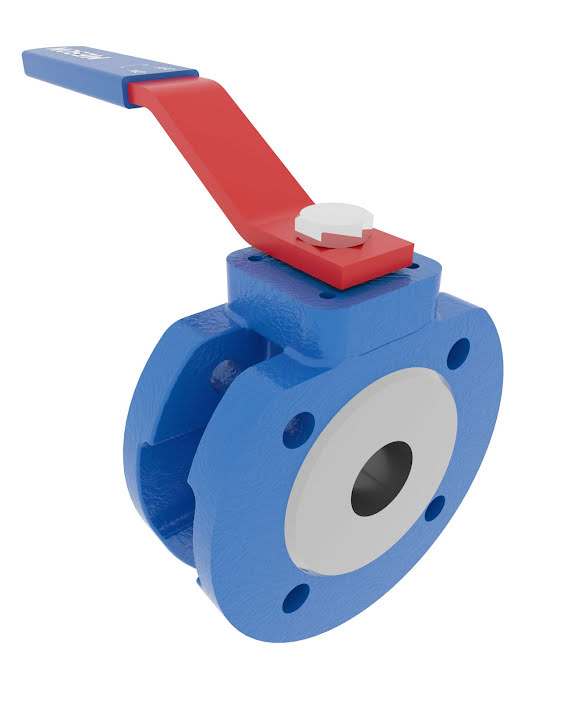

Ball Valve DN20
Straight type – short length
Details
Two piece, full bore, short length, Cast Iron body ball valve with Hard Chromed Brass ball and CPTFE seat. Raised face flanges. With direct mounting pad.

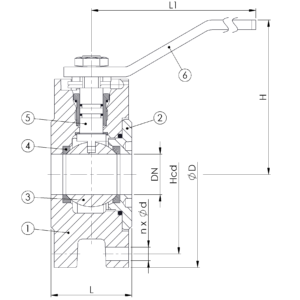

PARTSLIST AND DETAILS
Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Cast Steel | GG25 |
| 2 | Cap | Cast Steel | GG25 |
| 3 | Ball | Stainless Steel | CW 617N |
| 4 | Seat | PTFE | |
| 5 | Stem | Brass | CW 617N |
| 6 | Handle | Carbon Steel, Epoxy Coated |
Details
| DN | Pressure Rating Id | Hcd | ØD | L | Kg |
|---|---|---|---|---|---|
| 20 | 4xM12 | 75 | 105 | 40 | 1.9 |
