| Price View | Price Range |
|---|---|
| Product Group | 442095 |
| Execution | Straight |
| Pressure Rating | PN63 |
| End Type | Threaded |
| Working Pressure | Max. 20 bar (150°C), Max. 40 bar (100°C), Max. 5 bar (180°C), Max. 63 bar (38°C) |
| Standard | DIN |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea Water, Water |
| Size | 20 |
| Material Seat | PTFE |
| Material Body | Stainless Steel, 316 |

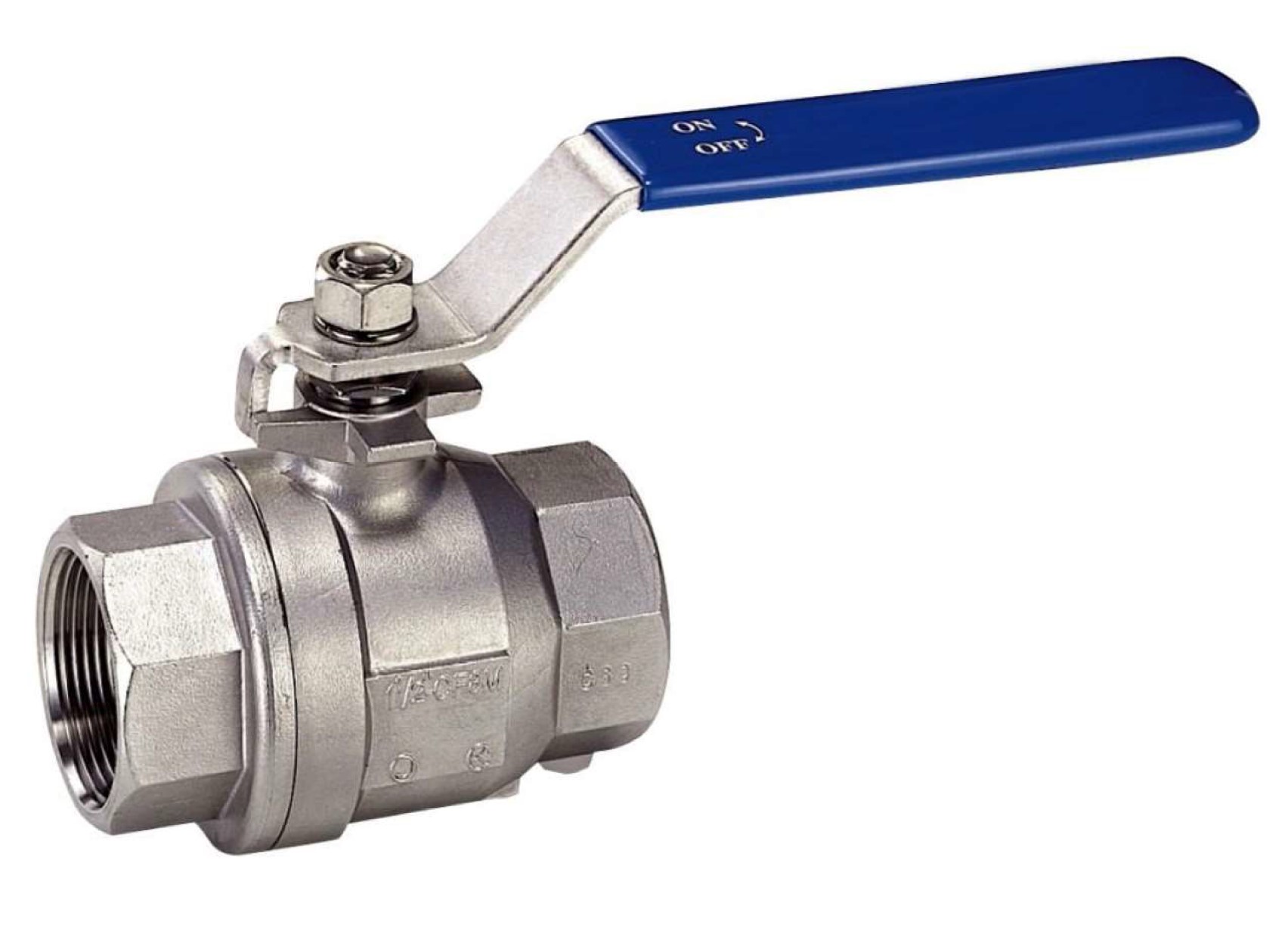

Ball Valve DN20 PN63
Straight Type, Threaded Connection
Details
Ball valve is mainly used as shut off in liquid systems where it is a need for high flow. Quarterturn operation. Full bore, two pieces. Anti blow-out stem.
PARTSLIST AND DETAILS

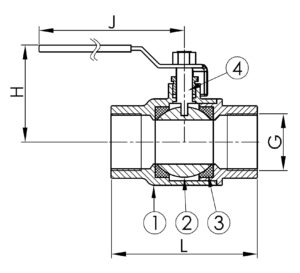

Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Stainless Steel | 1.4408 (AISI316) |
| 2 | Ball (Relief Hole) | Stainless Steel | 1.4408 (AISI316) |
| 3 | Seat | PTFE | |
| 4 | Stem | Stainless Steel | 1.4401 (AISI316) |
Details
| DN | Pressure Rating | L | G (BSP) | H | J | Kg |
|---|---|---|---|---|---|---|
| 20 | PN 63 | 73.4 | G 3/4″ | 68 | 124 | 0.5 |
