| Product Group | 445264 |
| Face To Face Standard | EN 558, series 1 |
| Top Flange Standard | ISO 5211 – F05 |
| Throughput Direction | Straight |
| Execution | Full Bore |
| Pressure Rating | PN40 |
| End Type | Flanged |
| Standard | DIN |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea Water, Steam, Thermal oil, Water |
| Size | 32 |
| Material Seat | CPTFE |
| Material Body | Cast Steel |

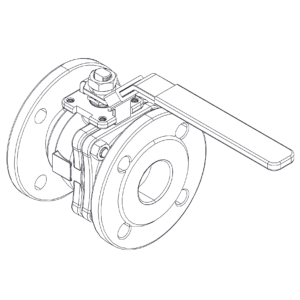

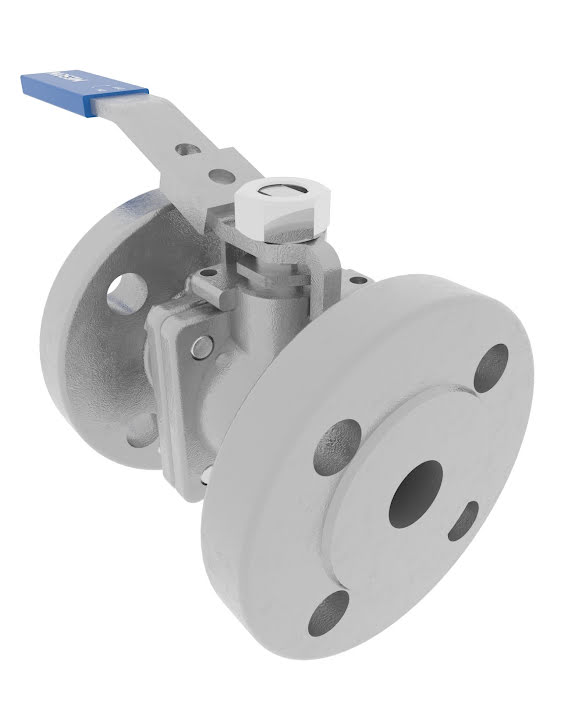

Ball Valve DN32 PN40
Straight type
Details
Two piece, full bore, Cast Steel body ball valve with Stainless Steel ball and CPTFE seat. Raised face flanges.

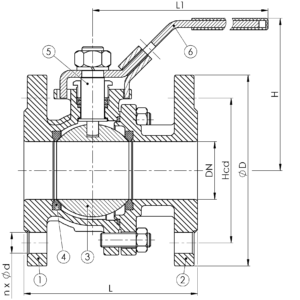

PARTSLIST AND DETAILS
Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Cast Steel | ASTM A216-WCB |
| 2 | Cap | Cast Steel | ASTM A216-WCB |
| 3 | Ball | Stainless Steel | ASTM A351-CF8M |
| 4 | Seat | CPTFE | |
| 5 | Stem | Stainless Steel | AISI 316 |
| 6 | Handle | Stainless Steel, Plastic Cover | AISI 430 |
Details
| DN | Pressure Rating Id | nxdd | Hcd |
|---|---|---|---|
| 32 | 40 | 4×18 | 100 |
| ØD | L | Kg | L1 | H |
|---|---|---|---|---|
| 140 | 180 | 6.2 | 170 | 88 |
