| Price View | Price Range |
|---|---|
| Product Group | 440195 |
| End Standard | EN 1092-1 |
| Face To Face Standard | EN 558, series 1 |
| Inspection Standard | API 598 |
| Remark | Connection: PN40 |
| Min temperature | -20°C |
| Top Flange Standard | ISO 5211 – F05 non-direct |
| Max temperature | +200°C |
| Throughput Direction | Straight |
| Execution | Full Bore |
| Pressure Rating | 1200WOG |
| End Type | Flanged |
| Design Code | ASME B16.34 |
| Standard | DIN |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea Water, Water |
| Size | 40 |
| Material Seat | PTFE |
| Material Body | Stainless Steel, 316 |

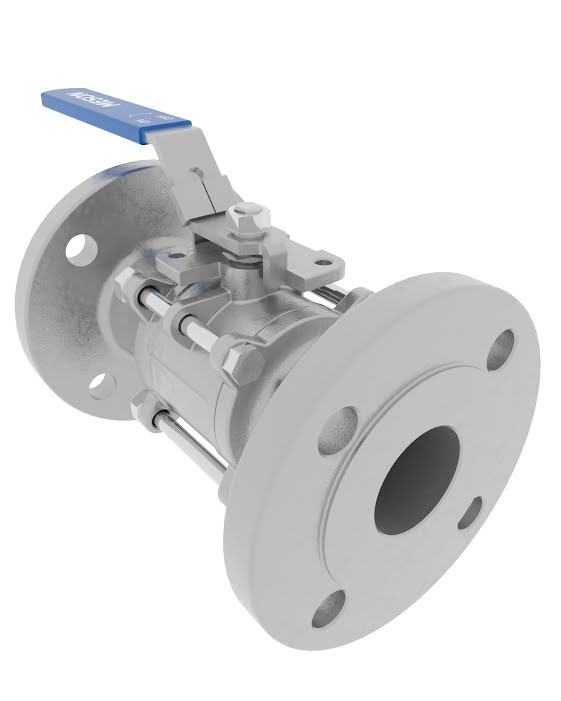

Ball Valve DN40 1200WOG
Straight type
Details
Three piece, full bore, Stainless Steel body ball valve with Stainless Steel ball and PTFE seat. Raised face flanges.

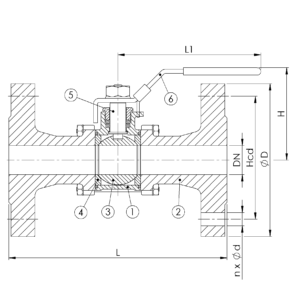

PARTSLIST AND DETAILS
Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Stainless Steel | ASTM A351-CF8M |
| 2 | Cap | Stainless Steel | ASTM A351-CF8M |
| 3 | Ball | Stainless Steel | ASTM A351-CF8M |
| 4 | Seat | PTFE | |
| 5 | Stem | Stainless Steel | ASTM A276-316 |
| 6 | Handle | Stainless Steel, Plastic Cover | 304 |
Details
| DN | Pressure Rating Id | nxdd | Hcd | ØD | L | L1 | H |
|---|---|---|---|---|---|---|---|
| 40 | 1200 | 4×18 | 110 | 150 | 200 | 214 | 112 |
