| Price View | Price Range |
|---|---|
| Product Group | 445164 |
| End Standard | DIN 2635 |
| Face To Face Standard | EN 558, series 14 |
| Inspection Standard | EN 12266 |
| Remark | Connection: PN40 |
| Top Flange Standard | ISO 5211 – F07 |
| Throughput Direction | Straight |
| Execution | Full Bore |
| Pressure Rating | PN40 |
| End Type | Flanged |
| Design Code | ASME B16.34 |
| Standard | DIN |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea Water, Steam, Thermal oil, Water |
| Size | 50 |
| Material Seat | TFM4215 |
| Material Body | Cast Steel |

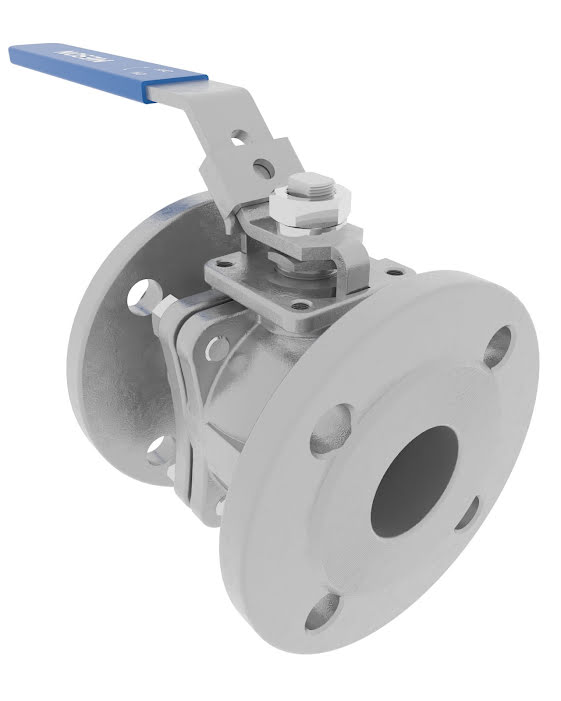

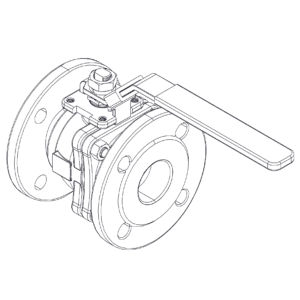

Ball Valve DN50 PN40
Straight type
Details
Two piece, full bore, Cast Steel body ball valve with Stainless Steel ball with relief hole and TFM4215 seat. Raised face flanges.

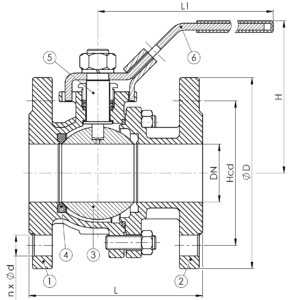

PARTSLIST AND DETAILS
Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Cast Steel | 1.0619 |
| 2 | Cap | Cast Steel | 1.0619 |
| 3 | Ball | Stainless Steel | 1.4308 |
| 4 | Seat | TFM4215 | |
| 5 | Stem | Stainless Steel | SUS304 |
| 6 | Handle | Stainless Steel, Plastic Cover | SUS304 |
Details
| DN | Pressure Rating Id | nxdd | Hcd |
|---|---|---|---|
| 50 | 40 | 4×18 | 125 |
| Ø D | L | Kg | L1 | H |
|---|---|---|---|---|
| 165 | 150 | 9.7 | 245 | 132 |
