| Price View | Price Range |
|---|---|
| Product Group | 445164 |
| End Standard | DIN 2635 |
| Face To Face Standard | EN 558, series 14 |
| Inspection Standard | EN 12266 |
| Top Flange Standard | ISO 5211 – F05/F07 |
| Throughput Direction | Straight |
| Execution | Full Bore |
| Pressure Rating | PN40 |
| End Type | Flanged |
| Design Code | ASME B16.34 |
| Standard | DIN |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea Water, Steam, Thermal oil, Water |
| Size | 50 |
| Material Seat | PTFE |
| Material Body | Cast Steel |

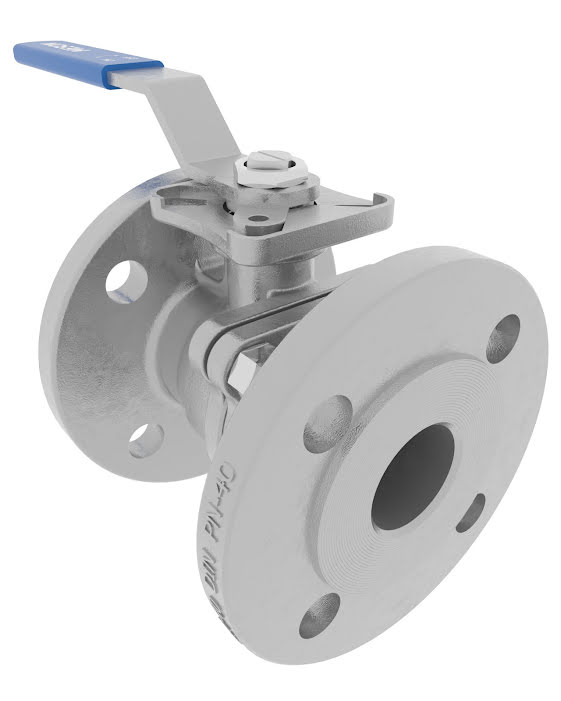

Ball Valve DN50 PN40
Straight type – with direct mounting pad
Details
Two piece, full bore, Cast Steel body ball valve with Stainless Steel ball and PTFE seat. Raised face flanges. With direct mounting pad.

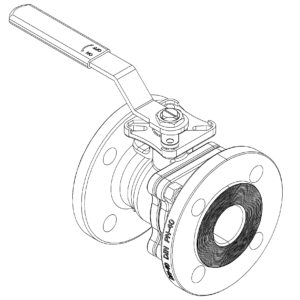

PARTSLIST AND DETAILS

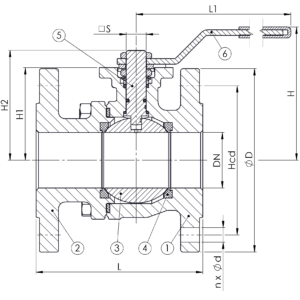

Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Cast Steel | ASTM A216-WCB |
| 2 | Cap | Cast Steel | ASTM A216-WCB |
| 3 | Ball | Stainless Steel | ASTM A351-CF8 |
| 4 | Seat | PTFE | |
| 5 | Stem | Stainless Steel | AISI 316 |
| 6 | Handle | Stainless Steel, Plastic Cover | AISI 430 |
Details
| DN | Pressure Rating Id | nxdd | Hcd | Ø D | L | Kg |
|---|---|---|---|---|---|---|
| 50 | 40 | 4×18 | 125 | 165 | 150 | 9.5 |
| L1 | H | H1 | H2 | S |
|---|---|---|---|---|
| 203 | 117.7 | 83.5 | 99 | 14 |
