| Price View | Price Range |
|---|---|
| Product Group | 443024 |
| Execution | Straight |
| Pressure Rating | PN32 |
| End Type | Threaded |
| Working Pressure | Max. 32 bar (120°C) |
| Standard | DIN |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea Water, Water |
| Size | 80 |
| Material Seat | PTFE |
| Material Body | Bronze |
Ball Valve DN80 PN32
Straight Type, Threaded Connection
Details
Ball valve is mainly used as shut off in liquid systems where it is a need for high flow. Quarterturn operation. Valve with enlarged grip area for easy installation and with female threaded ends. Full bore.

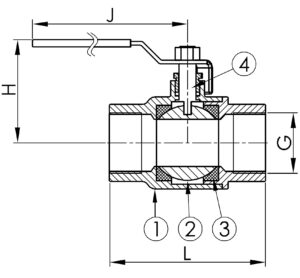

PARTSLIST AND DETAILS
Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Bronze | CC491K (RG5) |
| 2 | Ball | Brass Nickel Chrome Plate | CW617N (Ms58 NiCr) |
| 3 | Seat Ring | PTFE | |
| 4 | Stem | Brass | CW614N (Ms58) |
Details
| DN | Pressure Rating | L | G (BSP) | H | J | Kg |
|---|---|---|---|---|---|---|
| 80 | PN 32 | 178 | G 3″ | 134 | 280 | 6.0 |
