| Price View | Price Range |
|---|---|
| Product Group | 732701 |
| End Standard | EN 1092-2 |
| Face To Face Standard | EN 558, series 13 |
| Inspection Standard | EN 12266 |
| Remark | Connection: PN10 |
| Min temperature | -30°C |
| Top Flange Standard | ISO 5211 – F07 |
| Max temperature | +180°C |
| Variant | Bare Stem |
| Pressure Rating | PN10 |
| End Type | Double flange |
| Design Code | EN 593 |
| Standard | DIN |
| Application | Cargo oil, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid |
| Size | 200 |
| Material Seat | FPM/FKM |
| Material Disc | Aluminium Bronze |
| Material Body | Nodular Cast Iron, GGG40 |
Butterfly Valve DF DN200 PN10
Double flange type – bare stem
Details

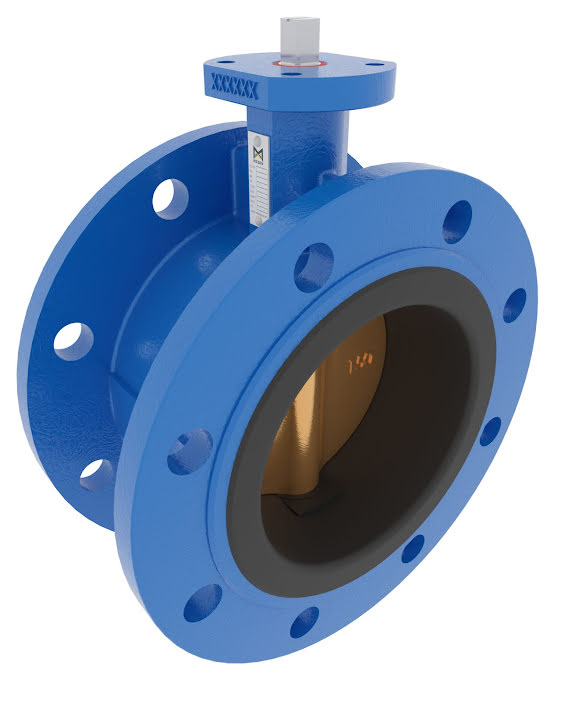

Nodular Cast Iron body, vulcanized liner double flange type butterfly valve with Aluminium Bronze disc. Centric free stem with standardized pattern for actuator mounting. Can handle negative pressure (vacuum), due to the meticulous

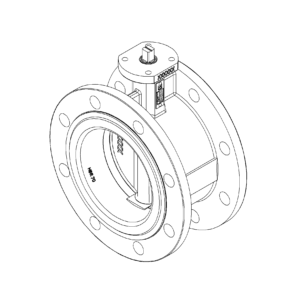

PARTSLIST AND DETAILS
Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Nodular Cast Iron | GGG40 |
| 2 | Disc | Aluminium Bronze | |
| 3 | Seat | FPM/FKM max working temp. 180°C | |
| 4 | Stem | Stainless Steel | 1.4401 |
| 5 | Pin | Duplex Stainless Steel | 1.4462 |
Details

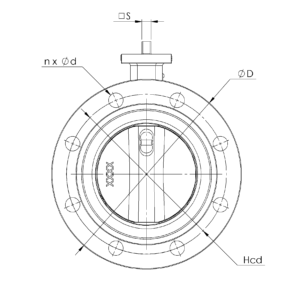

| DN | Pressure Rating Id | nxdd | Hcd | ØD |
|---|---|---|---|---|
| 200 | 10 | 8×23 | 295 | 340 |
| L | Kg | H1 | ØD2 | H2 | S | H3 |
|---|---|---|---|---|---|---|
| 152 | 26 | 167 | 90 | 204 | 17 | 25 |
