| Price View | Price Range |
|---|---|
| Product Group | 732901 |
| End Standard | JIS B2239 |
| Face To Face Standard | EN 558, series 13 |
| Inspection Standard | EN 12266 |
| Remark | Connection: JIS 5K |
| Min temperature | -30°C |
| Top Flange Standard | ISO 5211 – F07 |
| Max temperature | +180°C |
| Variant | Bare Stem |
| Pressure Rating | JIS 5K |
| End Type | Double flange |
| Design Code | EN 593 |
| Standard | JIS |
| Application | Cargo oil, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid |
| Size | 50 |
| Material Seat | FPM/FKM |
| Material Disc | Stainless Steel, 316 |
| Material Body | Nodular Cast Iron, GGG40 |

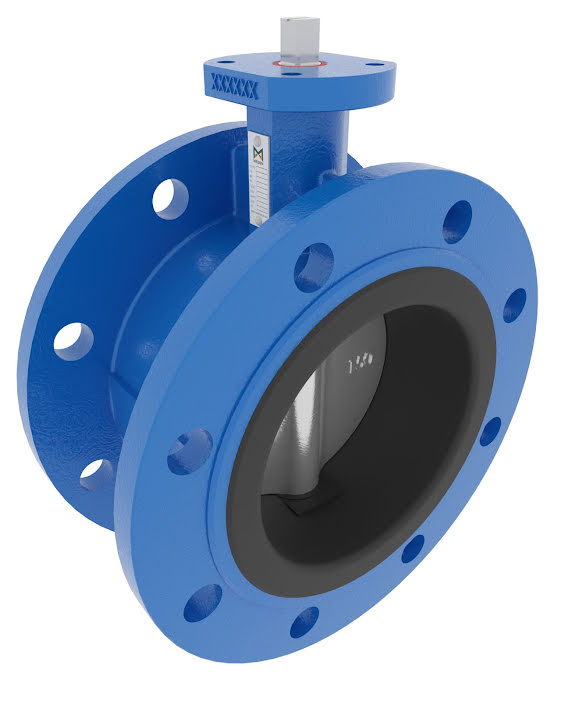

Butterfly Valve DF DN50 JIS 5K
Double flange type – bare stem
Details
Nodular Cast Iron body, vulcanized liner double flange type butterfly valve with Stainless Steel disc. Centric free stem with standardized pattern for actuator mounting. Can handle negative pressure (vacuum), due to the meticulous

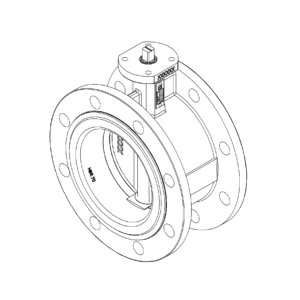

PARTSLIST AND DETAILS
Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Nodular Cast Iron | GGG40 |
| 2 | Disc | Stainless Steel | 1.4408 |
| 3 | Seat | FPM/FKM max working temp. 180°C | |
| 4 | Stem | Stainless Steel | 1.4401 |
| 5 | Pin | Duplex Stainless Steel | 1.4462 |
Details

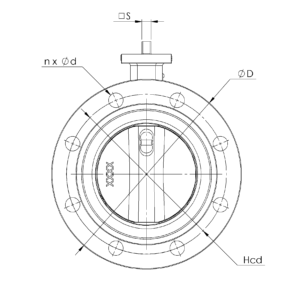

| DN | Pressure Rating Id | nxdd | Hcd | ØD |
|---|---|---|---|---|
| 50 | 5 | 4×15 | 105 | 165 |
| L | Kg | H1 | ØD2 | H2 | S | H3 |
|---|---|---|---|---|---|---|
| 108 | 6.7 | 71 | 90 | 118 | 11 | 19 |
