| Price View | Price Range |
|---|---|
| Product Group | 711802 |
| End Standard | EN 1092-2 |
| Face To Face Standard | EN 558, series 20 |
| Inspection Standard | EN 12266 |
| Remark | Connection: PN16 |
| Min temperature | -20°C |
| Top Flange Standard | ISO 5211 – F07 |
| Max temperature | +100°C |
| Variant | Gearbox |
| Pressure Rating | PN16 |
| End Type | Lug |
| Design Code | EN 593 |
| Standard | DIN |
| Application | Boiler feedwater, Condensate, Sea Water, Water |
| Size | 200 |
| Material Seat | EPDM |
| Material Disc | Stainless Steel, Super Duplex |
| Material Body | Nodular Cast Iron, GGG40 |

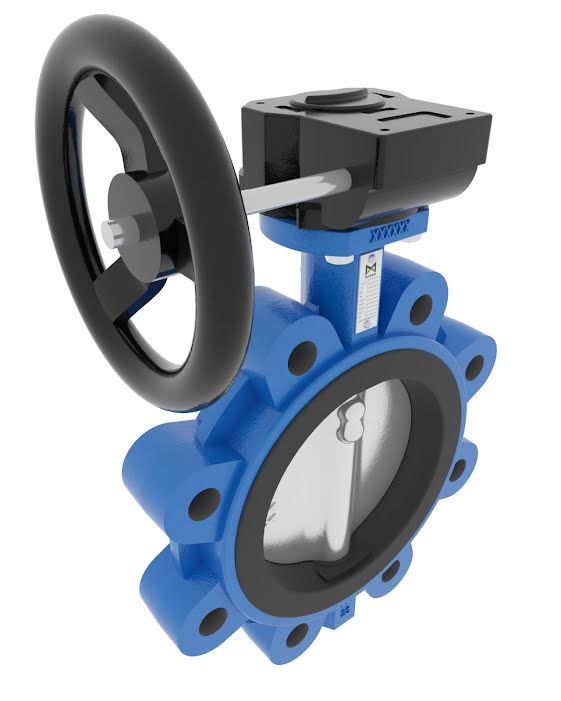

Butterfly Valve L DN200 PN16
Lug type – with gearbox
Details
Nodular Cast Iron body, vulcanized liner wafer type butterfly valve with Super Duplex disc. Centric free stem with standardized pattern for actuator mounting. Can handle negative pressure (vacuum), due to the meticulous vulcanization process.

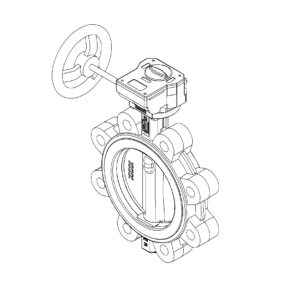

PARTSLIST AND DETAILS
Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Nodular Cast Iron | GGG40 |
| 2 | Disc | Super Duplex Stainless Steel | 1.4469 |
| 3 | Seat | EPDM max working temp. 100°C | |
| 4 | Stem | Stainless Steel | 1.4401 |
| 5 | Pin | Duplex Stainless Steel | 1.4462 |
| 6 | Gearbox | Cast Iron | GG20 |
| 7 | Gearbox shaft | Steel | C45 |
Details

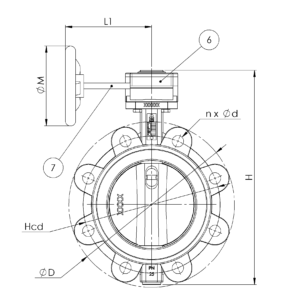

| DN | Pressure Rating Id | nxdd | Hcd | ØD |
|---|---|---|---|---|
| 200 | 16 | 12xM20 | 295 | 356 |
| L | Kg | L1 | H | H1 | L2 | H2 | ØM |
|---|---|---|---|---|---|---|---|
| 60 | 22.2 | 218 | 425 | 167 | 53 | 204 | 260 |
