| Price View | Price Range |
|---|---|
| Product Group | 712901 |
| End Standard | JIS B2239 |
| Face To Face Standard | EN 558, series 20 |
| Inspection Standard | EN 12266 |
| Remark | Connection: PN10 |
| Min temperature | -30°C |
| Top Flange Standard | ISO 5211 – F14 |
| Max temperature | +180°C |
| Variant | Bare Stem |
| Pressure Rating | PN10 |
| End Type | Lug |
| Design Code | EN 593 |
| Standard | JIS |
| Application | Cargo oil, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid |
| Size | 450 |
| Material Seat | FPM/FKM |
| Material Disc | Stainless Steel, 316 |
| Material Body | Nodular Cast Iron, GGG40 |

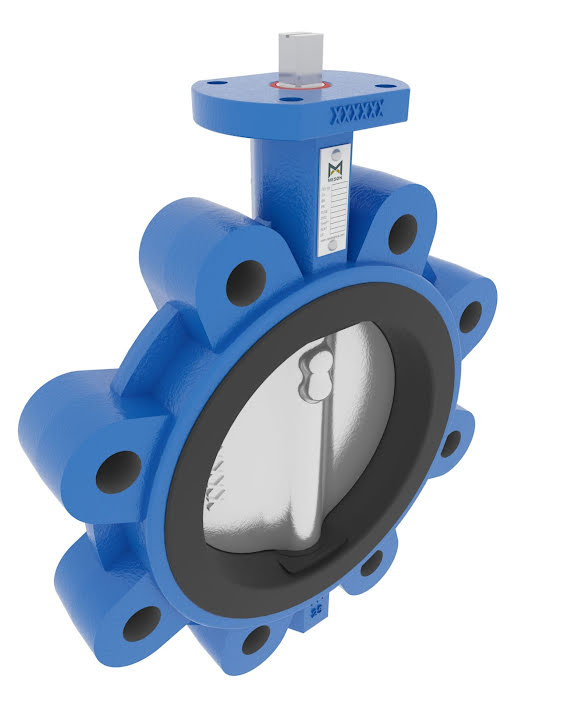

Butterfly Valve L DN450 PN10
Lug type – bare stem
Details
Nodular Cast Iron body, vulcanized liner lugged type butterfly valve with Stainless Steel disc. Centric free stem with standardized pattern for actuator mounting. Can handle negative pressure (vacuum), due to the meticulous vulcanization process.
PARTSLIST AND DETAILS
Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Nodular Cast Iron | GGG40 |
| 2 | Disc | Stainless Steel | 1.4408 |
| 3 | Seat | FPM/FKM max working temp. 180°C | |
| 4 | Stem | Stainless Steel | 1.4057 |
| 5 | Pin | Duplex Stainless Steel | 1.4462 |
Details

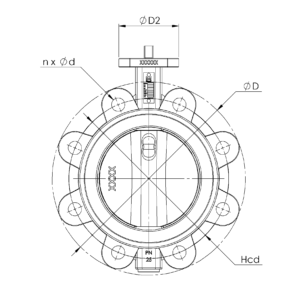

| DN | Pressure Rating Id | nxdd | Hcd | ØD |
|---|---|---|---|---|
| 450 | 10 | 20xM24 | 565 | 641 |
| L | Kg | H1 | ØD2 | H2 | S | H3 |
|---|---|---|---|---|---|---|
| 114 | 124 | 335 | 175 | 375 | 36 | 38 |
