| Price View | Price Range |
|---|---|
| Product Group | 302701 |
| Face To Face Standard | EN 558, series 16 |
| Remark | Multiflange: PN6/10/16, ANSI150, JIS5K/10K |
| Min temperature | -30°C |
| Max temperature | +180°C |
| Throughput Direction | Straight |
| Pressure Rating | PN10 |
| End Type | Wafer |
| Standard | DIN |
| Application | Cargo oil, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid |
| Size | 500 |
| Material Seat | FPM/FKM |
| Material Disc | Aluminium Bronze |
| Material Body | Nodular Cast Iron, GGG40 |

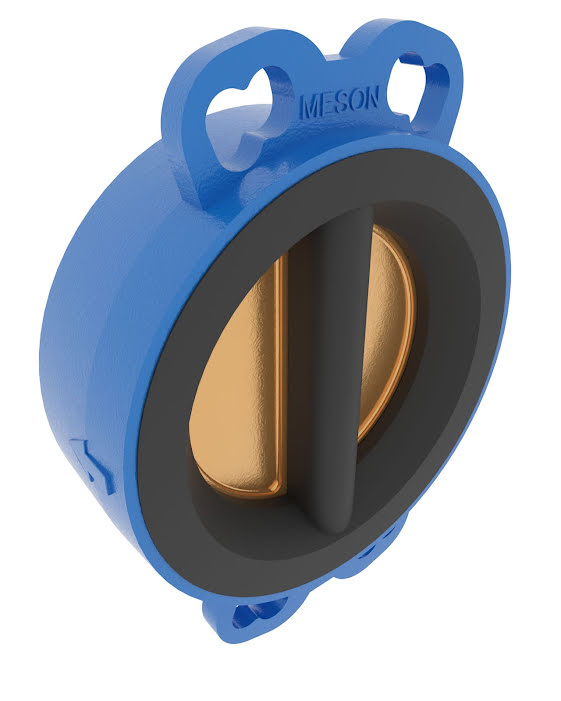

Dual Plate Check Valve DN500 PN10
Wafer type
Details
Nodular Cast Iron body, vulcanized injection molded FPM/FKM liner dual plate check valve with Aluminium Bronze disc. Opening pressure less than 0,2 bar.

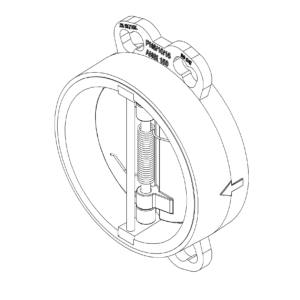

PARTSLIST AND DETAILS
Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Nodular Cast Iron | GGG40 |
| 2 | Seat | FPM/FKM | |
| 3 | Disc | Aluminium Bronze | |
| 4 | Spring | Inconel | |
| 5 | Shaft | Monel | |
| 6 | Clips | Aluminium Bronze |

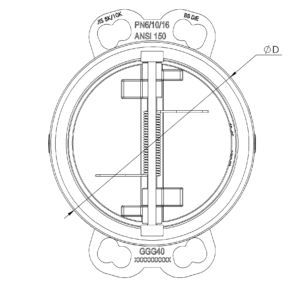

Details
| DN | Pressure Rating Id | ØD | L | Kg | L1 | ØD1 |
|---|---|---|---|---|---|---|
| 500 | 10 | 560 | 152 | 94 | 170 | 475 |
