| Product Group | 356722 |
| End Standard | EN 1092-3 (Inlet), ISO 228-1 (Outlet) |
| Remark | Connection: PN16 |
| Max temperature | +80°C |
| Throughput Direction | Angled |
| Pressure Rating | PN16 |
| End Type | Flanged/Threaded |
| Standard | DIN |
| Application | Sea Water, Water |
| Size | 50 |
| Material Seat | NBR |
| Material Disc | Brass |
| Material Body | Bronze |

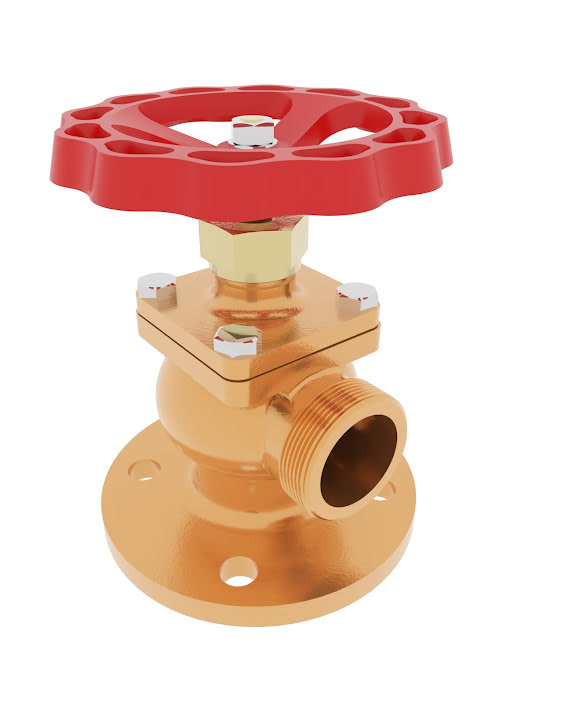

Fire Valve DN50 PN16
Angled type
Details
Bronze RG5 body soft sealing fire valve. Rising stem with bolted bonnet. Angled hose connection. Raised face flanged inlet, BSP male threaded outlet.
PARTSLIST AND DETAILS
Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Bronze | CC 491K |
| 2 | Disc Ring | NBR | |
| 3 | Disc | Brass | CW 710R |
| 4 | Bonnet | Bronze | CC 491K |
| 5 | Gasket | NBR bonded aramid | |
| 6 | Stem | Brass | CW 710R |
| 7 | Handwheel | Cast Iron | GG25 |
Details
| DN | Pressure Rating Id | nxdd | Hcd | Ø D |
|---|---|---|---|---|
| 50 | 16 | 4×18 | 125 | 165 |
| L | Kg | L1 | H | G | Ø M |
|---|---|---|---|---|---|
| 73 | 5.3 | 75 | 150 | 2″ | 140 |
