| Price View | Price Range |
|---|---|
| Product Group | 312891 |
| Max temperature | +150°C |
| Pressure Rating | PN10 |
| End Type | Threaded |
| Standard | DIN |
| Application | Boiler feedwater, Condensate, Sea Water, Water |
| Size | 50 |
| Material Body | Stainless Steel, 316 |
Float Valve 2″ PN10

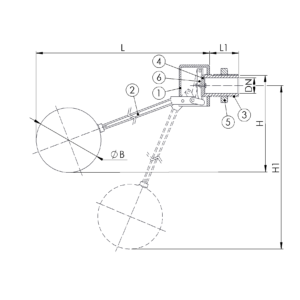

PARTSLIST AND DETAILS
Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Stainless Steel | AISI 316 |
| 2 | Stem | Stainless Steel | AISI 316 |
| 3 | Coupling | Stainless Steel | AISI 316 |
| 4 | Seal | Silicone | |
| 5 | Nut | Stainless Steel | AISI 316 |
| 6 | Lever | Stainless Steel | AISI 316 |
Details
| DN | Pressure Rating Id | L | Kg |
|---|---|---|---|
| 50 | 10 | 798 | 3.9 |
| L1 | Inch | H | H1 | ØB |
|---|---|---|---|---|
| 70 | 2″ | 255/324 | 736 | 200 |
