| Price View | Price Range |
|---|---|
| Product Group | F-7363 |
| End Standard | JIS B2220 |
| Inspection Standard | JIS F7400 |
| Remark | Connection: JIS 5K |
| Throughput Direction | Straight |
| Pressure Rating | JIS 5K |
| End Type | Flanged |
| Design Code | JIS F7363 |
| Standard | JIS |
| Application | Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea Water, Thermal oil, Water |
| Size | 125 |
| Material Seat | Bronze |
| Material Disc | Cast Iron |
| Material Body | Cast Iron |
Gate Valve 5K-125 mm
Gate Valve 5K-125 mm
Details

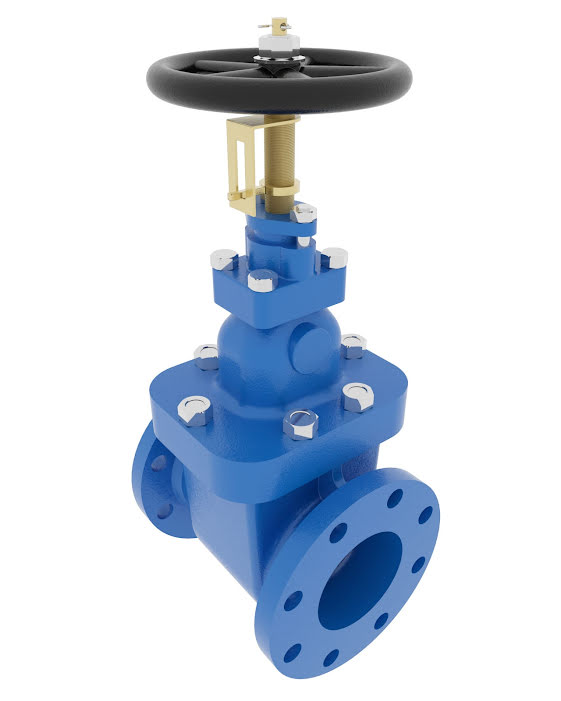

Cast Iron body gate valve, Cast Iron wedge, Bronze RG5 seat. Non rising stem with open/close indicator and bolted bonnet. Flat face flanges.

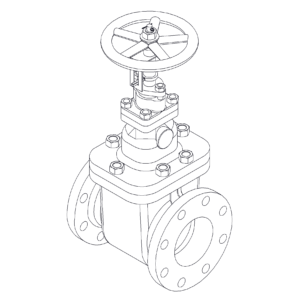

PARTSLIST AND DETAILS

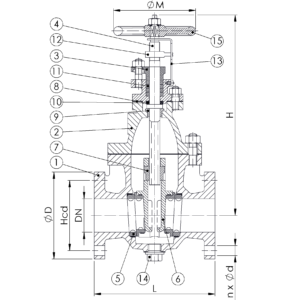

Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Cast Iron | HT200 |
| 2 | Bonnet | Cast Iron | HT200 |
| 3 | Gland | Brass | H62 |
| 4 | Stem | Brass | H62 |
| 5 | Sealing Ring | Bronze | ZCuSn5Pb5Zn5 |
| 6 | Wedge | Cast Iron | HT200 |
| 7 | Wedge Nut | Brass | H62 |
| 8 | Gasket | Graphite | |
| 9 | Thrust Bush | Brass | H62 |
| 10 | Thrust Pad | Brass | H62 |
| 11 | Packing | Graphite | |
| 12 | Indicator | Brass | H62 |
| 13 | Indicator Plate | Brass | H62 |
| 14 | Plug | Brass | H62 |
| 15 | Handwheel | Cast Iron | HT200 |
Details
| DN | Pressure Rating Id | nxdd | Hcd |
|---|---|---|---|
| 125 | 5 | 8×19 | 200 |
| ØD | L | H | ØM |
|---|---|---|---|
| 235 | 250 | 495 | 200 |
