| Price View | Price Range |
|---|---|
| Product Group | 401522 |
| End Standard | EN 1092-3 |
| Face To Face Standard | EN 558, series 14 |
| Remark | Connection: PN16 |
| Min temperature | -10°C |
| Max temperature | +120°C |
| Throughput Direction | Straight |
| Pressure Rating | PN16 |
| End Type | Flanged |
| Design Code | EN 12288 |
| Standard | DIN |
| Application | Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea Water, Steam, Thermal oil, Water |
| Size | 100 |
| Material Seat | Bronze |
| Material Disc | Bronze |
| Material Body | Bronze |

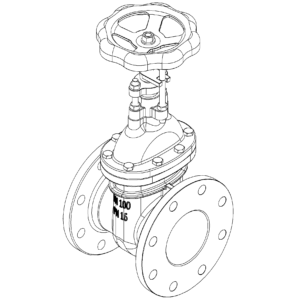

Gate Valve DN100 PN16
With indicator
Details
RG5 body gate valve, RG5 wedge and seats. Non rising stem with open/close indicator and bolted bonnet. Flat face flanges.

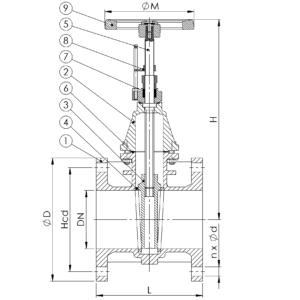

PARTSLIST AND DETAILS
Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Bronze | CC 491K |
| 2 | Bonnet | Bronze | CC 491K |
| 3 | Wedge | Bronze | CC 491K |
| 4 | Seats | Bronze | CC 491K |
| 5 | Stem | Brass | CW710R |
| 6 | Bonnet Gasket | Asbestos Free | |
| 7 | Gland Packing | PTFE | |
| 8 | Indicator | Bronze | CC 491K |
| 9 | Handwheel | Cast Iron | GG25 |
Details
| DN | Pressure Rating Id | nxdd | Hcd |
|---|---|---|---|
| 100 | 16 | 8×18 | 180 |
| ØD | L | Kg | H | ØM |
|---|---|---|---|---|
| 220 | 190 | 23 | 360 | 160 |
