| Price View | Price Range |
|---|---|
| Product Group | 401522 |
| End Standard | EN 1092-3 |
| Face To Face Standard | EN 558, series 14 |
| Execution | Straight |
| Pressure Rating | PN16 |
| End Type | Flanged |
| Bonnet Connection | Bolted |
| Working Pressure | Max. 10 bar up to 225°C (steam up to 180°C), Max. 16 bar (up to 120°C) |
| Standard | DIN |
| Application | Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea Water, Steam, Thermal oil, Water |
| Size | 125 |
| Material Body | Bronze |

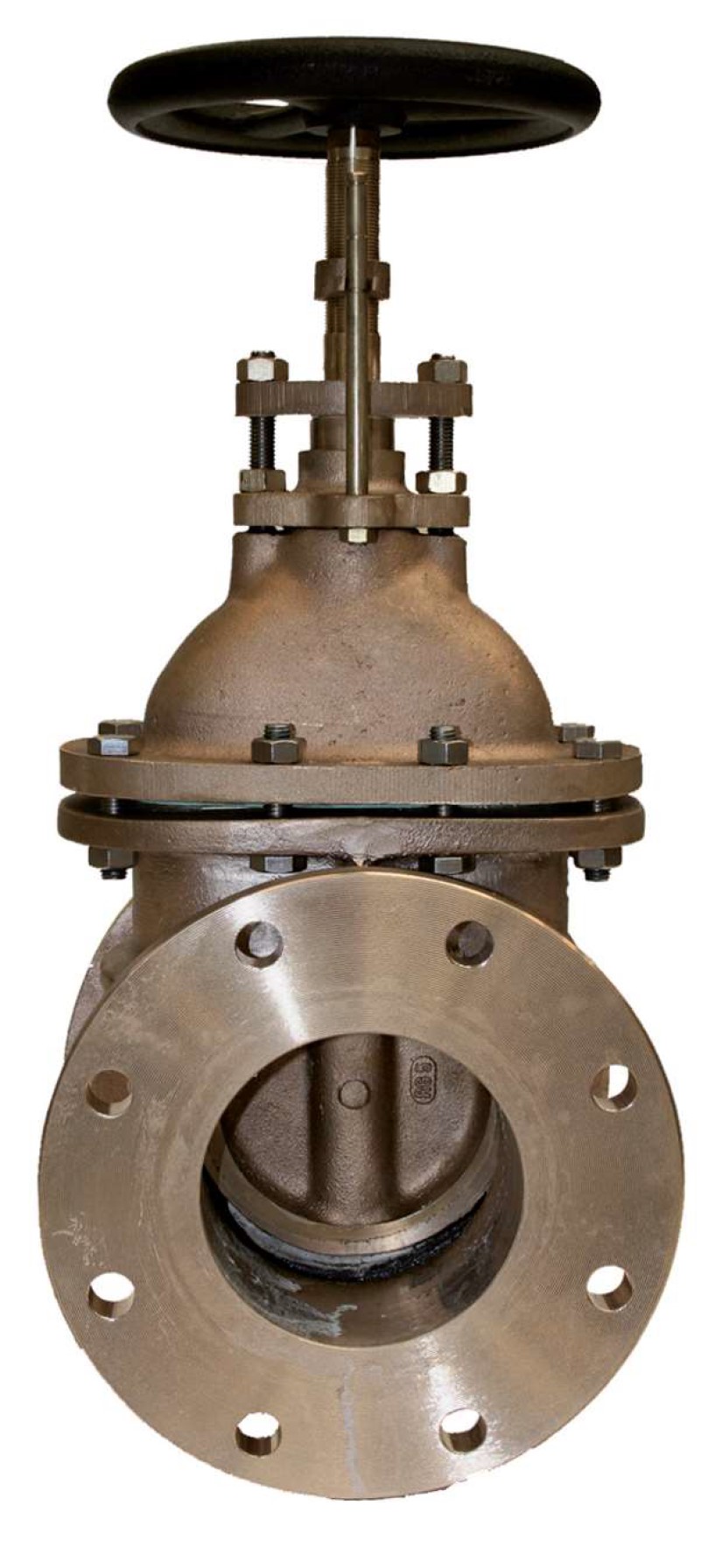

Gate Valve DN125 PN16
Flanged Connection, with Indicator
Details
Gate valve used as shut off in cooling, sea water and shipside applications. Multiturn operation. Non-rising stem. For warm seawater it is recommended to use a stem of zinc free bronze, CuSn6.
PARTSLIST AND DETAILS

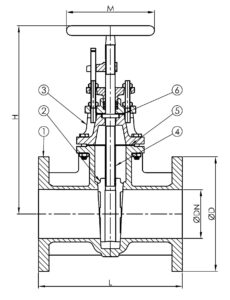

Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Bronze | CC491K (RG5) |
| 2 | Wedge | Bronze | CC491K (RG5) |
| 3 | Bonnet | Bronze | CC491K (RG5) |
| 4 | Stem | Special Brass | CW710R (SoMs59) |
| 5 | Body Sealing | NBR Bonded Aramid | |
| 6 | Bonnet Sealing | NBR Bonded Aramid |
Details
| DN | Pressure Rating | Connection | L |
|---|---|---|---|
| 125 | PN 16 | PN 16 | 200 |
| D | H | M | Kg |
|---|---|---|---|
| 250 | 450 | 200 | 39.0 |
