| Price View | Price Range |
|---|---|
| Product Group | 611102 |
| End Standard | EN 1092-2 |
| Face To Face Standard | EN 558, series 14 |
| Remark | Connection: PN16 |
| Min temperature | -10°C |
| Max temperature | +120°C |
| Throughput Direction | Straight |
| Pressure Rating | PN16 |
| End Type | Flanged |
| Standard | DIN |
| Application | Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea Water, Thermal oil, Water |
| Size | 125 |
| Material Seat | Bronze |
| Material Disc | Nodular Cast Iron, GGG40 |
| Material Body | Nodular Cast Iron, GGG40 |

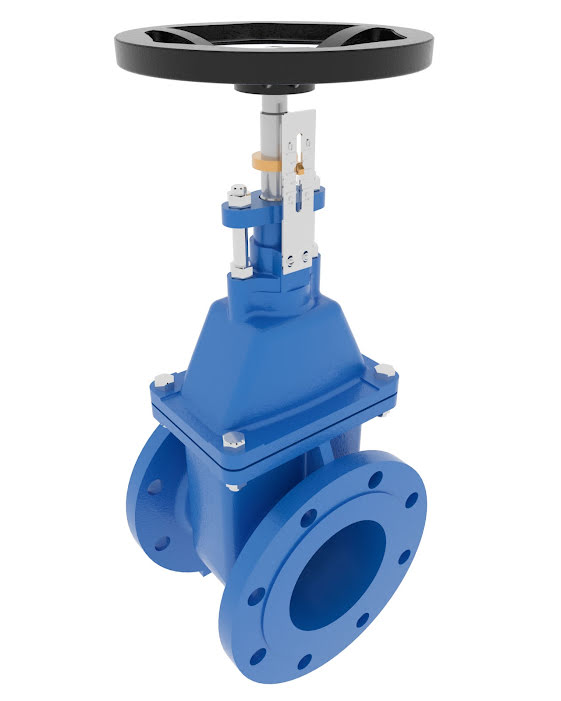

Gate Valve DN125 PN16
With indicator
Details
Nodular Cast Iron body gate valve, Nodular Cast Iron wedge, Bronze RG5 seat. Non rising stem with open/close indicator and bolted bonnet. Raised face flanges.
PARTSLIST AND DETAILS

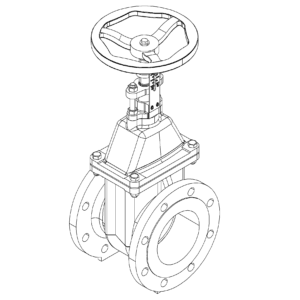

Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Nodular Cast Iron | GGG40 |
| 2 | Bonnet | Nodular Cast Iron | GGG40 |
| 3 | Wedge | Nodular Cast Iron | GGG40 |
| 4 | Seat | Bronze | CC 491K |
| 5 | Stem | Brass | CW 607N |
| 6 | Gasket | Graphite | |
| 7 | Gland Packing | Graphite | |
| 8 | Indicator | Stainless Steel | 1.4301 |
| 9 | Indicator Plate | Stainless Steel | 1.4301 |
| 10 | Handwheel | Cast Iron |
Details
| DN | Pressure Rating Id | nxdd | Hcd |
|---|---|---|---|
| 125 | 16 | 8×19 | 210 |
| ØD | L | Kg | H | ØM |
|---|---|---|---|---|
| 250 | 200 | 28 | 467 | 200 |
