| Product Group | 620767 |
| End Standard | ASME B16.5 |
| Face To Face Standard | ASME B16.10 |
| Inspection Standard | API 598 |
| Remark | Connection: ANSI 150 |
| Throughput Direction | Straight |
| Pressure Rating | ANSI 150 |
| End Type | Flanged |
| Design Code | API 600 |
| Standard | ANSI |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea Water, Steam, Thermal oil, Water |
| Size | 150 |
| Material Seat | Stainless Steel, 420 |
| Material Disc | Cast Steel |
| Material Body | Cast Steel |

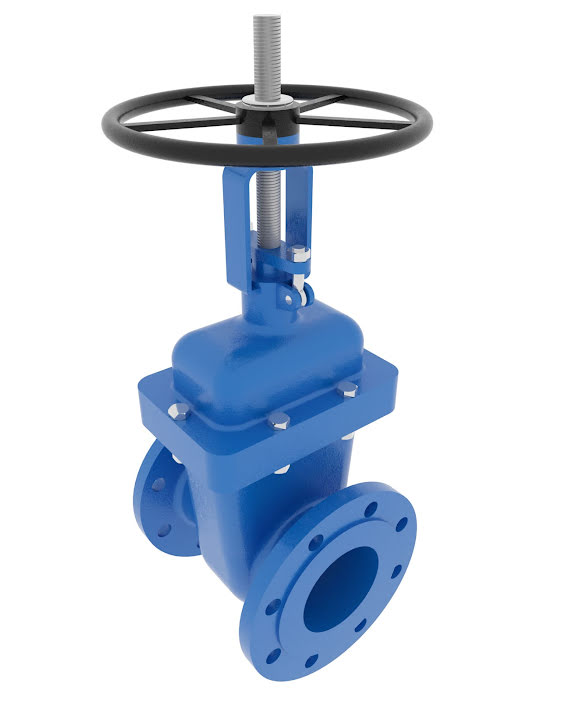

Gate Valve DN150 ANSI 150
Details
Cast Steel body gate valve, Cast Steel wedge, Stainless Steel seat. Rising stem and bolted bonnet. Raised face flanges.

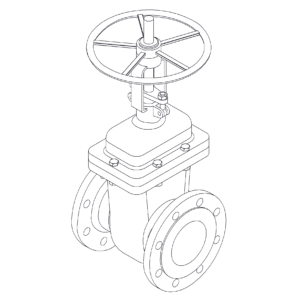

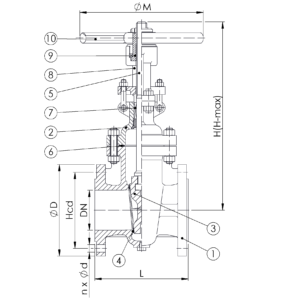

PARTSLIST AND DETAILS
Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Cast Steel | ASTM A216-WCB |
| 2 | Bonnet | Cast Steel | ASTM A216-WCB |
| 3 | Wedge | Cast Steel | ASTM A216-WCB |
| 4 | Seat | Stainless Steel | Deposited 13Cr |
| 5 | Stem | Stainless Steel | ASTM A182-F6a |
| 6 | Bonnet Gasket | Graphite | |
| 7 | Packing | Graphite | |
| 8 | Yoke | Cast Steel | ASTM A216-WCB |
| 9 | Stem Nut | Aluminium Bronze | |
| 10 | Handwheel | Cast Iron |
Details
| DN | Pressure Rating Id | nxdd | Hcd | ØD | L | Kg | ØM |
|---|---|---|---|---|---|---|---|
| 150 | 150 | 8×22 | 241 | 280 | 267 | 85 | 350 |
