| Price View | Price Range |
|---|---|
| Product Group | 620762 |
| End Standard | EN 1092-1 |
| Face To Face Standard | EN 558, series 14 |
| Inspection Standard | EN 12266 |
| Remark | Connection: PN16 |
| Throughput Direction | Straight |
| Pressure Rating | PN16 |
| End Type | Flanged |
| Design Code | EN 1984 |
| Standard | DIN |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea Water, Steam, Thermal oil, Water |
| Size | 150 |
| Material Seat | Stainless Steel, 420 |
| Material Disc | Cast Steel |
| Material Body | Cast Steel |

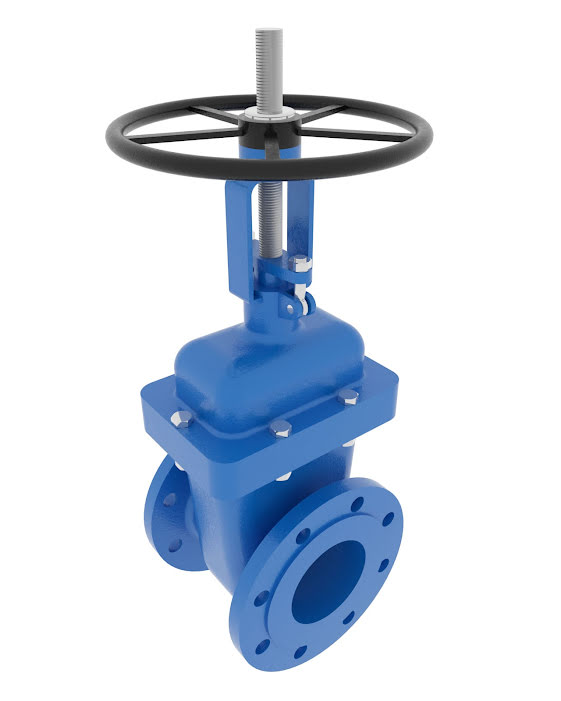

Gate Valve DN150 PN16
Details
Cast Steel body gate valve, Cast Steel wedge, Stainless Steel seat. Rising stem and bolted bonnet. Raised face flanges.

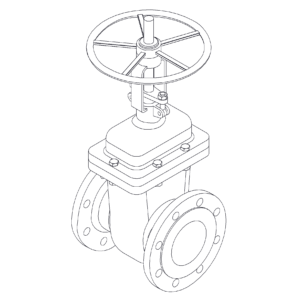

PARTSLIST AND DETAILS
Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Cast Steel | ASTM A216-WCB |
| 2 | Bonnet | Cast Steel | ASTM A216-WCB |
| 3 | Wedge | Cast Steel | ASTM A216-WCB |
| 4 | Seat | Stainless Steel | Deposited 13Cr |
| 5 | Stem | Stainless Steel | ASTM A182-F6a |
| 6 | Bonnet Gasket | Graphite | |
| 7 | Packing | Graphite | |
| 8 | Yoke | Cast Steel | ASTM A216-WCB |
| 9 | Stem Nut | Aluminium Bronze | |
| 10 | Handwheel | Cast Iron |

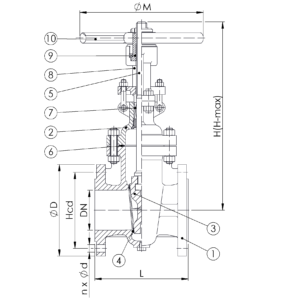

Details
| DN | Pressure Rating Id | nxdd | Hcd |
|---|---|---|---|
| 150 | 16 | 8×22 | 240 |
| ØD | L | Hmax | Kg | H | ØM |
|---|---|---|---|---|---|
| 285 | 210 | 847 | 134 | 676 | 380 |
