| Price View | Price Range |
|---|---|
| Product Group | 620002 |
| End Standard | EN 1092-2 |
| Face To Face Standard | EN 558, series 14 |
| Execution | Straight |
| Pressure Rating | PN16 |
| End Type | Flanged |
| Bonnet Connection | Bolted |
| Working Pressure | Max. 16 bar (120°C) |
| Standard | DIN |
| Application | Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea Water, Thermal oil, Water |
| Size | 150 |
| Material Seat | Bronze |
| Material Body | Nodular Cast Iron, GGG40.3 |

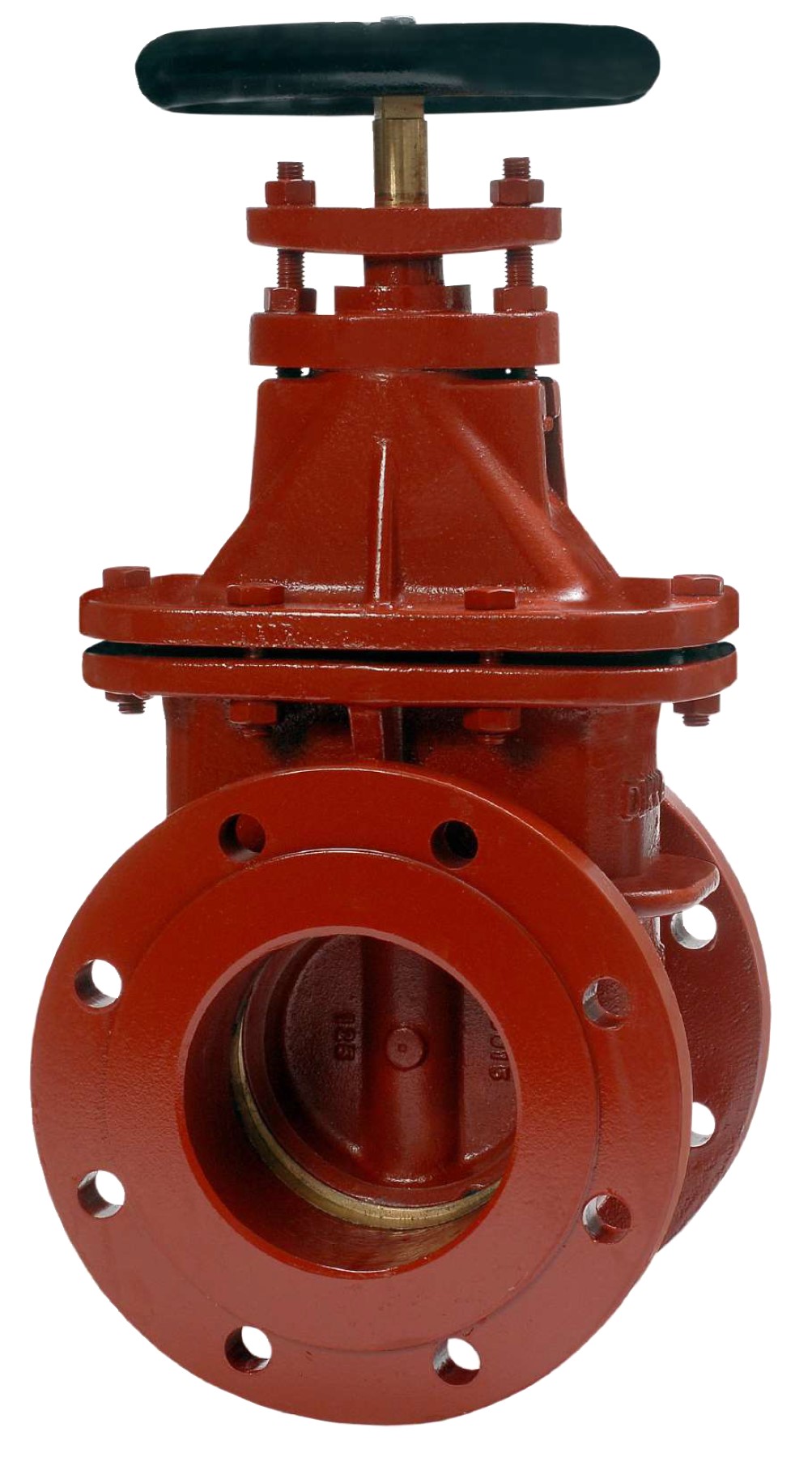

Gate Valve DN150 PN16
Gate Valve without Indicator, Flanged Connection
Details
Gate valve used as shut off in cooling, sea water and shipside applications. Multiturn operation. Non-rising stem.

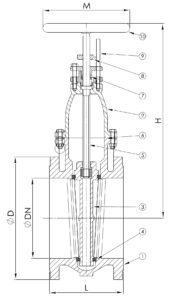

PARTSLIST AND DETAILS
Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Ductile Iron | EN-JS1025 (GGG40.3) |
| 2 | Bonnet | Ductile Iron | EN-JS1025 (GGG40.3) |
| 3 | Wedge | Ductile Iron | EN-JS1025 (GGG40.3) |
| 4 | Seat | Bronze | CC491K (RG5) |
| 5 | Stem | Brass | CW614N (Ms58) |
| 6 | Gasket | NBR Bonded Aramid | |
| 7 | Gland Packing | PTFE | |
| 10 | Handwheel | Cast Iron | EN-JL1040 (GG25) |
Details
| DN | Pressure Rating | Connection | L |
|---|---|---|---|
| 150 | PN 16 | PN 16 | 210 |
| D | H | M | Kg |
|---|---|---|---|
| 285 | 435 | 200 | 50.0 |
