| Product Group | 620462 |
| End Standard | EN 1092-1 |
| Face To Face Standard | EN 558, series 14 |
| Execution | Straight |
| Pressure Rating | PN10 |
| End Type | Flanged |
| Bonnet Connection | Bolted |
| Working Pressure | Max. 10 Bar (120°C) |
| Standard | DIN |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea Water, Steam, Thermal oil, Water |
| Size | 200 |
| Material Seat | Stainless Steel, 304 |
| Material Body | Cast Steel |

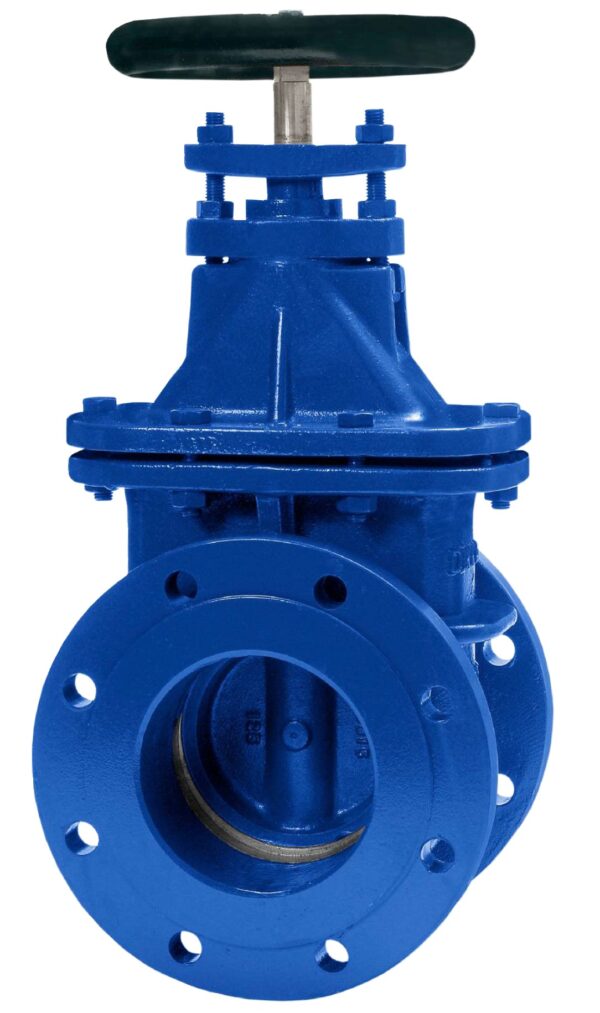

Gate Valve DN200 PN10
Gate Valve without Indicator, Flanged Connection
Details
Gate valve used as shut off in cooling, sea water and shipside applications. Multiturn operation. Non-rising stem.
PARTSLIST AND DETAILS

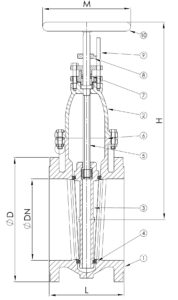

Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Cast Steel | 1.0619 (WCB) |
| 2 | Bonnet | Cast Steel | 1.0619 (WCB) |
| 3 | Wedge | Cast Steel | 1.0619 (WCB) |
| 4 | Seat | Stainless Steel | 1.4301 (AISI304) |
| 5 | Stem | Stainless Steel | 1.4021 (AISI420) |
| 6 | Gasket | NBR Bonded Aramid | |
| 7 | Gland Packing | PTFE | |
| 10 | Handwheel | Cast Iron | EN-JL1040 (GG25) |
Details
| DN | Pressure Rating | Connection | L |
|---|---|---|---|
| 200 | PN 10 | PN 10 | 230 |
| D | H | M | Kg |
|---|---|---|---|
| 340 | 555 | 250 | 100.0 |
