| Price View | Price Range |
|---|---|
| Product Group | 398362 |
| End Standard | EN 1092-1 |
| Inspection Standard | EN 12266 |
| Remark | Connection: PN16 |
| Throughput Direction | Straight |
| Pressure Rating | PN16 |
| End Type | Flanged |
| Design Code | EN 1984 |
| Standard | DIN |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea Water, Steam, Thermal oil, Water |
| Size | 200 |
| Material Seat | Stainless Steel, 420 |
| Material Disc | Cast Steel |
| Material Body | Cast Steel |

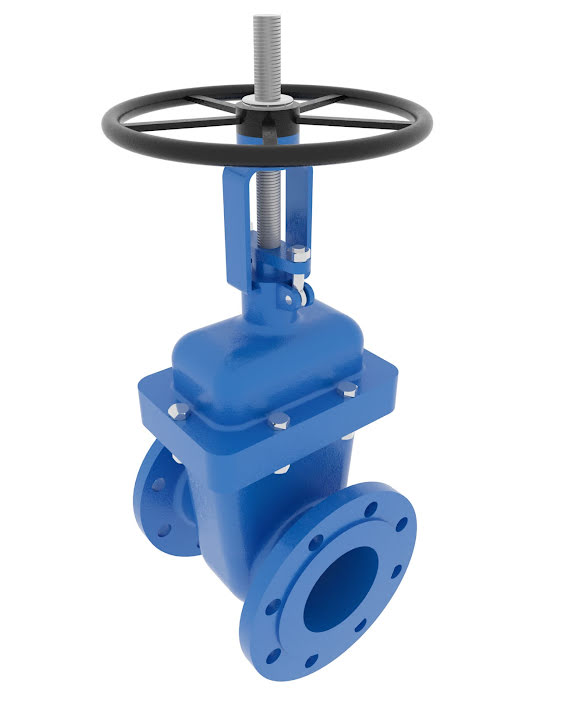

Gate Valve DN200 PN16
Details
Cast Steel gate valve with Cast Steel wedge and Stainless Steel seat. Rising stem, bolted bonnet. With drain plug. Raised face flanges.

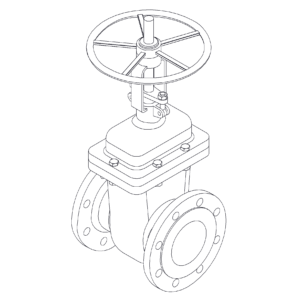

PARTSLIST AND DETAILS
Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Cast Steel | ASTM A216-WCB |
| 2 | Bonnet | Cast Steel | ASTM A216-WCB |
| 3 | Wedge | Cast Steel | ASTM A216-WCB |
| 4 | Seat | Stainless Steel | Deposited 13Cr |
| 5 | Stem | Stainless Steel | ASTM A182-F6a |
| 6 | Bonnet Gasket | Graphite | |
| 7 | Packing | Graphite | |
| 8 | Yoke | Cast Steel | ASTM A216-WCB |
| 9 | Stem Nut | Aluminium Bronze | |
| 10 | Handwheel | Cast Iron |

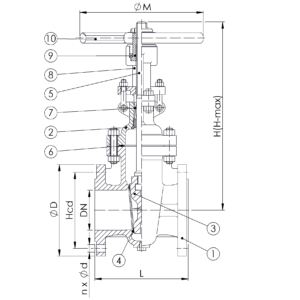

Details
| DN | Pressure Rating Id | nxdd | Hcd |
|---|---|---|---|
| 200 | 16 | 12×22 | 295 |
| ØD | L | Hmax | Kg | H | ØM |
|---|---|---|---|---|---|
| 340 | 330 | 1039 | 192 | 820 | 400 |
