| Price View | Price Range |
|---|---|
| Product Group | 620302 |
| End Standard | EN 1092-2 |
| Face To Face Standard | EN 558, series 14 |
| Inspection Standard | EN 12266 |
| Remark | Connection: PN16 |
| Max temperature | +70°C |
| Throughput Direction | Straight |
| Pressure Rating | PN16 |
| End Type | Flanged |
| Standard | DIN |
| Application | Boiler feedwater, Condensate, Sea Water, Water |
| Size | 50 |
| Material Disc | EPDM |
| Material Body | Nodular Cast Iron, GGG50 |

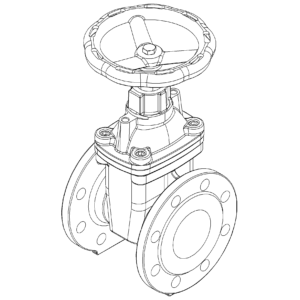

Gate Valve DN50 PN16
Soft Seated
Details
Nodular Cast Iron body gate valve, EPDM coated wedge. Non rising stem and bolted bonnet. Raised face flanges.
PARTSLIST AND DETAILS

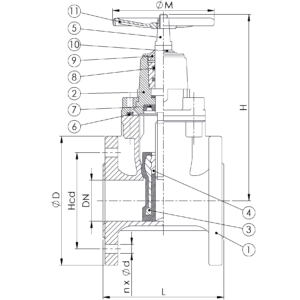

Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Nodular Cast Iron | GGG50 |
| 2 | Bonnet | Nodular Cast Iron | GGG50 |
| 3 | Wedge | EPDM Coated | |
| 4 | Wedge Nut | Brass | CW 602N |
| 5 | Stem | Stainless Steel | 1.4021 |
| 6 | Bonnet Seal | EPDM | |
| 7 | Seal Ring | EPDM | |
| 8 | O-Ring | EPDM | |
| 9 | Thrust Bearing | Brass | CW 602N |
| 10 | Seal | EPDM | |
| 11 | Handwheel | Nodular Cast Iron | GGG50 |
Details
| DN | Pressure Rating Id | nxdd | Hcd |
|---|---|---|---|
| 50 | 16 | 4×19 | 125 |
| ØD | L | Kg | H | ØM |
|---|---|---|---|---|
| 165 | 150 | 10.7 | 240 | 160 |
