| Product Group | 400822 |
| End Standard | EN 1092-3 |
| Execution | Straight |
| Pressure Rating | PN16 |
| End Type | Flanged |
| Bonnet Connection | Screwed, Secured |
| Working Pressure | Max. 10 Bar (150°C), Max. 16 bar (up to 120°C), Max. 6 bar up to 225°C (steam up to 180°C) |
| Standard | DIN |
| Application | Cargo oil, Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea Water, Steam, Thermal oil, Water |
| Size | 50 |
| Material Body | Bronze |
Gate Valve DN50 PN16
Flanged Connection
Details
Gate valve used as shut off in liquid and steam applications. Multiturn operation. Non-rising stem.

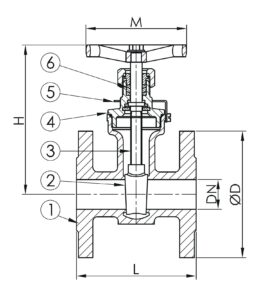

PARTSLIST AND DETAILS
Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Bronze | CC491K (RG5) |
| 2 | Wedge | Bronze | CC491K (RG5) |
| 3 | Stem | Special Brass | CW710R (SoMs59) |
| 4 | Bonnet | Bronze | CC491K (RG5) |
| 5 | Securing Plate | Galvanized Steel | |
| 6 | Bonnet Sealing | Rubber / PTFE Fiber Composite |
Details
| DN | Pressure Rating | Connection | L |
|---|---|---|---|
| 50 | PN 16 | PN 16 | 110 |
| D | H | M | Kg |
|---|---|---|---|
| 165 | 180 | 100 | 6.4 |
