| Price View | Price Range |
|---|---|
| Product Group | 456092 |
| End Standard | EN 10226-1 |
| Throughput Direction | Straight |
| Variant | SDSL |
| Pressure Rating | 200WOG |
| End Type | Threaded |
| Standard | DIN |
| Application | Air, Cargo oil, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Sea Water, Steam, Thermal oil, Water |
| Size | 10 |
| Material Disc | Stainless Steel, 316 |
| Material Body | Stainless Steel, 316 |

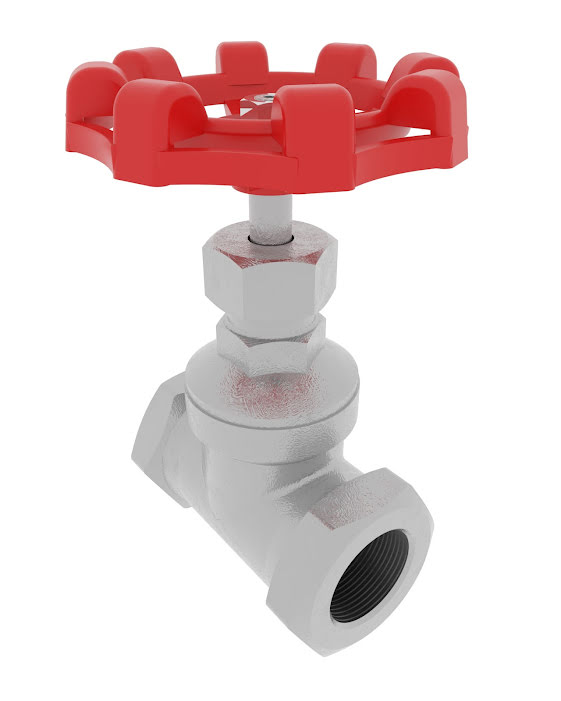

Globe Valve ⅜” 200WOG
Straight type – SDSL
Details
Straight type, Stainless Steel body, metal seated globe valve with rising stem. Screwed bonnet. BSPP female threaded ends.

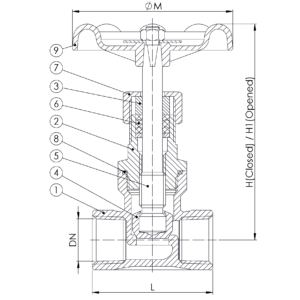

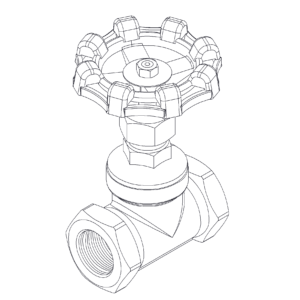

PARTSLIST AND DETAILS
Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Stainless Steel | CF8M |
| 2 | Bonnet | Stainless Steel | CF8M |
| 3 | Gland | Stainless Steel | SUS 304 |
| 4 | Disc | Stainless Steel | CF8M |
| 5 | Stem | Stainless Steel | SUS 316 |
| 6 | Packing | PTFE | |
| 7 | Gland Nut | Stainless Steel | CF8M |
| 8 | Gasket | PTFE | |
| 9 | Handwheel | Aluminium |
Details
| DN | Pressure Rating Id | L | Kg |
|---|---|---|---|
| 10 | 200 | 52 | 0.3 |
| Inch | H | H1 | ØM |
|---|---|---|---|
| 3/8″ | 91 | 103 | 70 |
