| Price View | Price Range |
|---|---|
| Product Group | 456122 |
| End Standard | EN 10226-1 |
| Min temperature | -10°C |
| Max temperature | +200°C |
| Throughput Direction | Angled |
| Variant | SDNR |
| Pressure Rating | PN16 |
| End Type | Threaded |
| Standard | DIN |
| Application | Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea Water, Steam, Water |
| Size | 40 |
| Material Disc | Bronze |
| Material Body | Bronze |

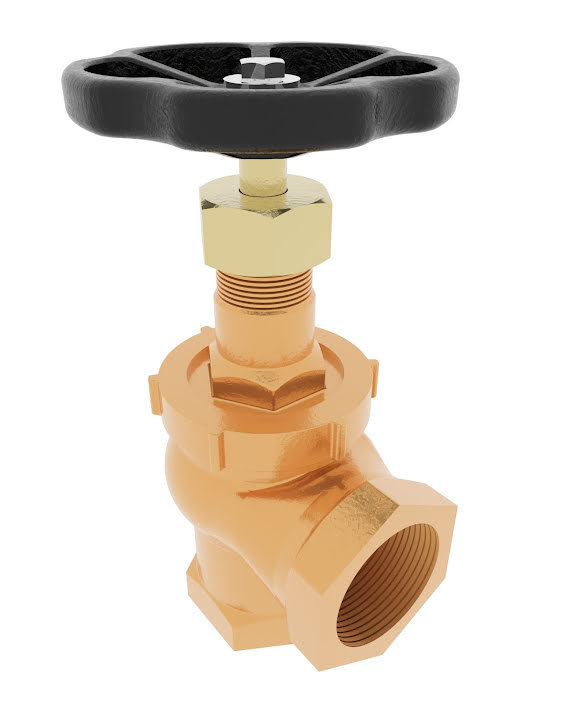

Globe Valve 1 ½” PN16
Angled type – SDNR
Details
Angled type, RG5 body, metal seated globe valve with rising stem. Screwed and secured bonnet. BSPP female threaded ends.

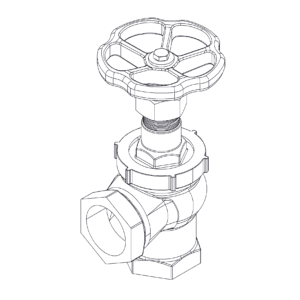

PARTSLIST AND DETAILS
Partslist

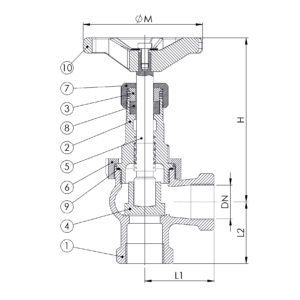

| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Bronze | RG5 |
| 2 | Bonnet | Bronze | RG5 |
| 3 | Gland | Brass | Ms58 |
| 4 | Disc | Bronze | RG5 |
| 5 | Stem | Special Brass | Som59 |
| 6 | Bonnet Nut | Bronze | RG5 |
| 7 | Gland Nut | Brass | Ms58 |
| 8 | Packing | Graphite | |
| 9 | Gasket | PTFE | |
| 10 | Handwheel | Cast Iron | GG25 |
Details
| DN | Pressure Rating Id | Kg | L1 | Inch | H | L2 | ØM |
|---|---|---|---|---|---|---|---|
| 40 | 16 | 2.5 | 65 | 1 1/2″ | 135 | 55 | 100 |
