| Product Group | 456022 |
| End Standard | ISO 228-1 |
| Max temperature | +225°C (steam: 180°C) |
| Throughput Direction | Straight |
| Variant | SDNR with spring |
| Pressure Rating | PN16 |
| End Type | Threaded |
| Standard | DIN |
| Application | Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea Water, Steam, Water |
| Size | 25 |
| Material Disc | Bronze |
| Material Body | Bronze |

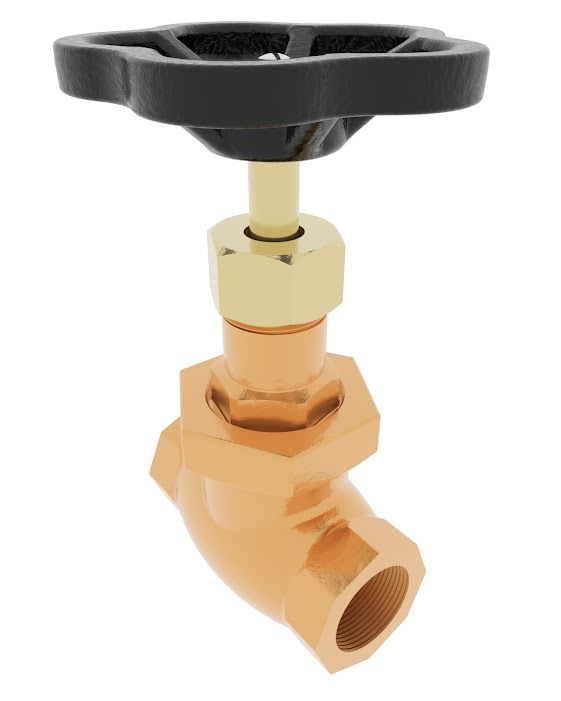

Globe Valve 1″ PN16
Straight type – SDNR with spring
Details
Straight type, RG5 body, metal seated globe valve with rising stem. Screwed and secured bonnet. BSPP female threaded ends.

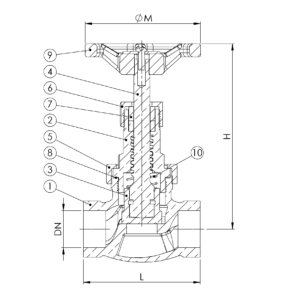

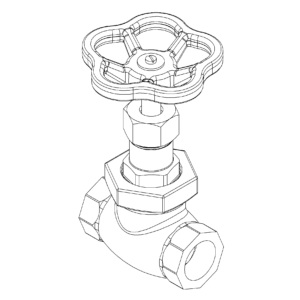

PARTSLIST AND DETAILS
Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Bronze | RG5 |
| 2 | Bonnet | Bronze | RG7 |
| 3 | Disc | Bronze | RG7 |
| 4 | Stem | Special Brass | Som59 |
| 5 | Bonnet Nut | Bronze | RG5 |
| 6 | Gland Nut | Brass | Ms58 |
| 7 | Gland | Brass | Ms58 |
| 8 | Gasket | PTFE | |
| 9 | Handwheel | Cast Iron | GG25 |
| 10 | Spring | Stainless Steel | 1.4571 |
Details
| DN | Pressure Rating Id | L | Kg | Inch | H | ØM |
|---|---|---|---|---|---|---|
| 25 | 16 | 90 | 1.2 | 1″ | 115 | 80 |
