| Price View | Price Range |
|---|---|
| Product Group | 456022 |
| End Standard | ISO 228-1 |
| Inspection Standard | EN 12266 |
| Throughput Direction | Straight |
| Variant | SDNR |
| Pressure Rating | PN16 |
| End Type | Threaded |
| Design Code | DIN 3844 |
| Standard | DIN |
| Application | Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea Water, Steam, Water |
| Size | 50 |
| Material Disc | Brass |
| Material Body | Bronze |

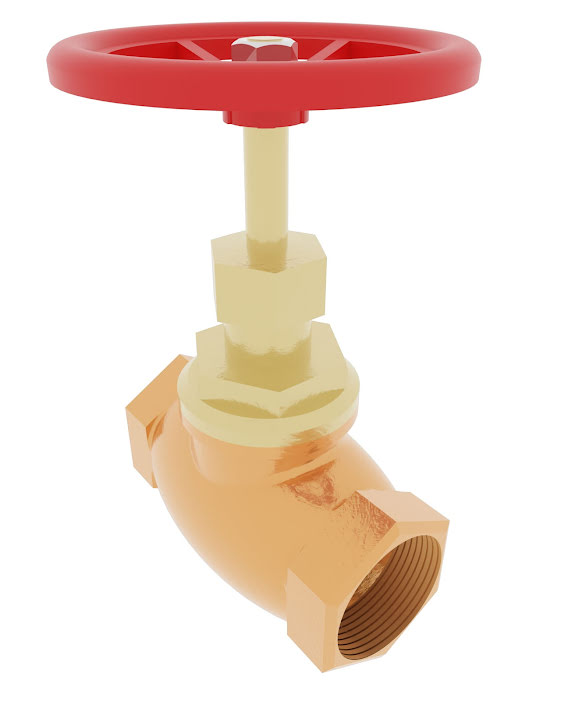

Globe Valve 2″ PN16
Straight type – SDNR
Details
Straight type, RG5 body, metal seated globe valve with rising stem. Screwed and secured bonnet. BSPP female threaded ends.

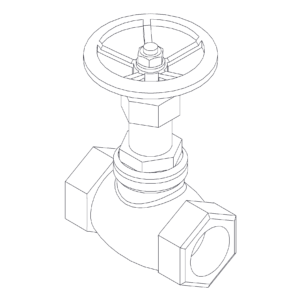

PARTSLIST AND DETAILS

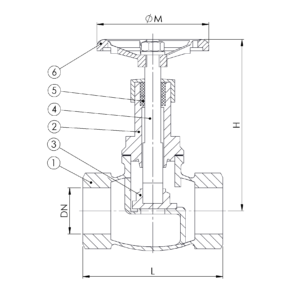

Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Bronze | RG5 |
| 2 | Bonnet | Brass | Ms58 |
| 3 | Disc | Brass | Ms58 |
| 4 | Stem | Brass | Ms58 |
| 5 | Packing | Graphite | |
| 6 | Handwheel | Aluminium |
Details
| DN | Pressure Rating Id | L | Kg | Inch | H | ØM |
|---|---|---|---|---|---|---|
| 50 | 16 | 130 | 2.3 | 2″ | 128 | 110 |
