| Price View | Price Range |
|---|---|
| Product Group | 456322 |
| End Standard | EN 1092-3 |
| Remark | Connection: PN16 |
| Min temperature | -10°C |
| Max temperature | +200°C |
| Throughput Direction | Angled |
| Variant | SDSL |
| Pressure Rating | PN16 |
| End Type | Flanged |
| Standard | DIN |
| Application | Boiler feedwater, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea Water, Steam, Water |
| Size | 100 |
| Material Disc | Bronze |
| Material Body | Bronze |

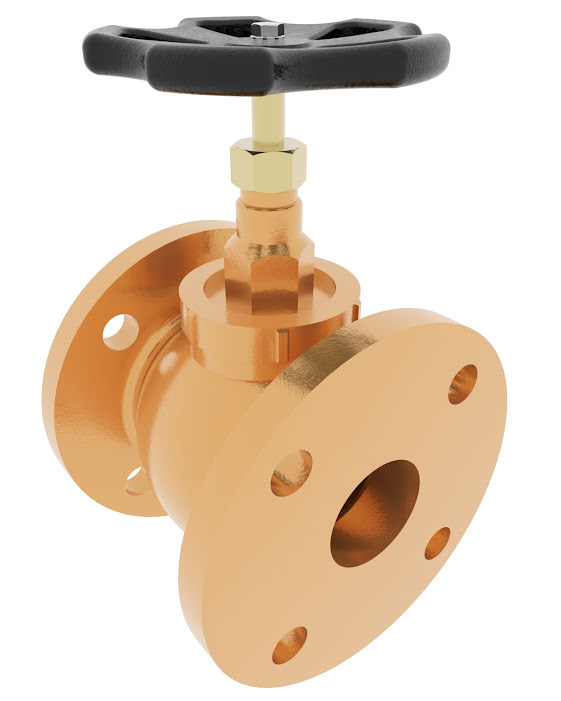

Globe Valve DN100 PN16
Stop Valve DN100 PN16
Details
Straight type, RG5 body, metal seated globe valve with rising stem. Screwed and secured bonnet. Flat face flanges. Regulating disc.

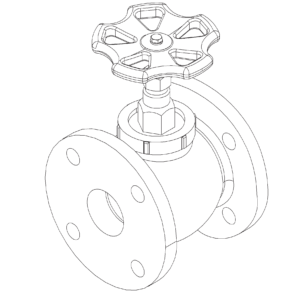

PARTSLIST AND DETAILS

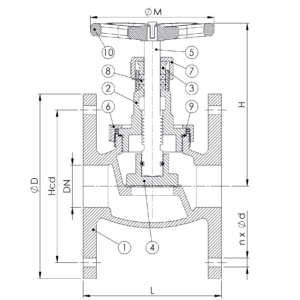

Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Bronze | RG5 |
| 2 | Bonnet | Bronze | RG5 |
| 3 | Gland | Brass | Ms58 |
| 4 | Disc | Bronze | RG5 |
| 5 | Stem | Special Brass | Som59 |
| 6 | Bonnet nut | Bronze | RG5 |
| 7 | Gland nut | Brass | Ms58 |
| 8 | Packing | Graphite | |
| 9 | Gasket | PTFE | |
| 10 | Handwheel | Cast Iron | GG25 |
Details
| DN | Pressure Rating Id | nxdd | Hcd |
|---|---|---|---|
| 100 | 16 | 8×18 | 180 |
| ØD | L | Kg | H | ØM |
|---|---|---|---|---|
| 220 | 230 | 21 | 250 | 200 |
