| Price View | Price Range |
|---|---|
| Product Group | 467102 |
| End Standard | EN 1092-2 |
| Face To Face Standard | EN 558, series 8 |
| Inspection Standard | EN 12266 |
| Remark | Connection: PN16 |
| Throughput Direction | Angled |
| Variant | SDNR with spring |
| Pressure Rating | PN16 |
| End Type | Flanged |
| Design Code | EN 13789 |
| Standard | DIN |
| Application | Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Flammable media, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea Water, Water |
| Size | 20 |
| Material Seat | Bronze |
| Material Disc | Bronze |
| Material Body | Nodular Cast Iron, GGG40 |

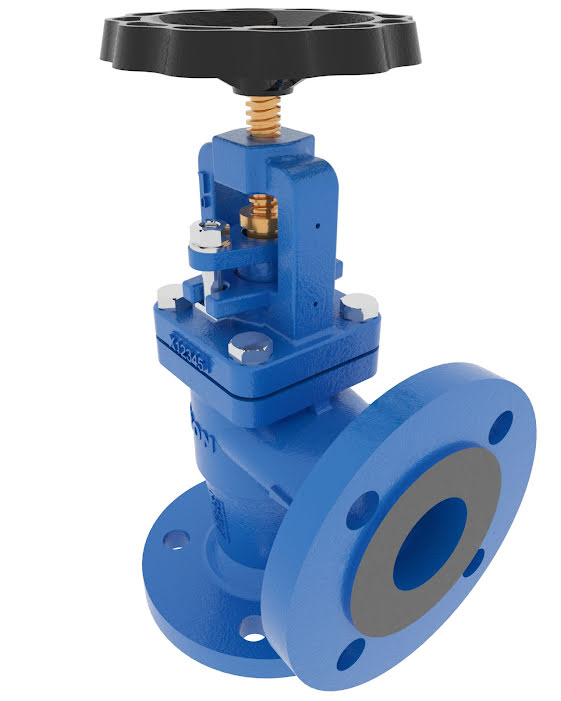

Globe Valve DN20 PN16
Angled type – SDNR with spring
Details
Angled type, Nodular Cast Iron body, metal seated globe valve with rising stem and bolted bonnet. Raised face flanges.

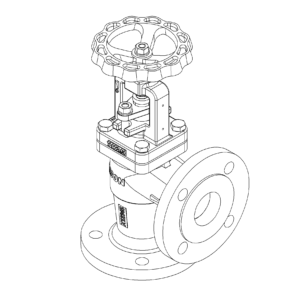

PARTSLIST AND DETAILS
Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Nodular Cast Iron | GGG40 |
| 2 | Bonnet | Nodular Cast Iron | GGG40 |
| 3 | Seat | Bronze | RG5 |
| 4 | Disc | Bronze | RG5 |
| 5 | Stem | Special Brass | Som59 |
| 6 | Gland packing | Graphite | |
| 7 | Gasket | Graphite | |
| 8 | Handwheel | Cast Iron | GG25 |
| 9 | Spring | Stainless Steel | 1.4301 |

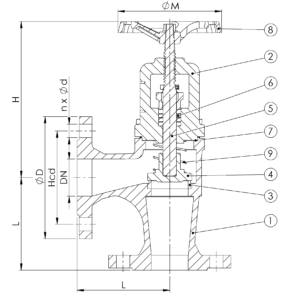

Details
| DN | Pressure Rating Id | nxdd | Hcd |
|---|---|---|---|
| 20 | 16 | 4×14 | 75 |
| ØD | L | Kg | H | ØM |
|---|---|---|---|---|
| 105 | 95 | 4.5 | 173 | 120 |
