| Price View | Price Range |
|---|---|
| Product Group | 456322 |
| End Standard | EN 1092-3 |
| Execution | Straight |
| Variant | SDNR with spring |
| Pressure Rating | PN16 |
| End Type | Flanged |
| Bonnet Connection | Screwed, Secured |
| Working Pressure | Max. 10 bar up to 225°C (steam up to 180°C), Max. 16 bar (up to 120°C) |
| Standard | DIN |
| Remark | For temperatures up to 225°C, steam up to 180°C |
| Application | Boiler feedwater, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea Water, Steam, Water |
| Size | 20 |
| Material Disc | Bronze |
| Material Body | Bronze |

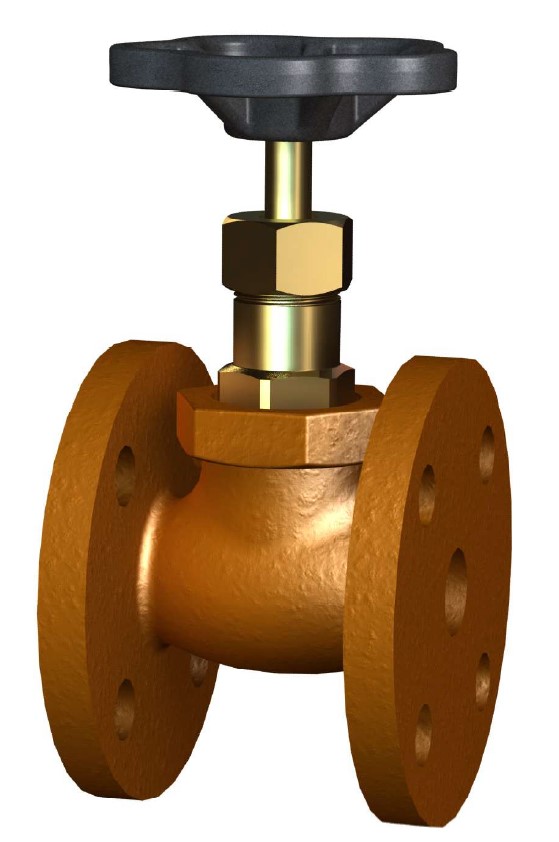

Globe Valve DN20 PN16
Straight Type, Flanged Connection – SDNR Disc with Spring
Details
Globe valve with shut off or screw down non return (SDNR) function. Straight, rising stem type with fl anged ends, screwed and secured bonnet as well as metal sealing. For warm sea water it is recommended to use a stem of zinc free bronze, CuSn6.
PARTSLIST AND DETAILS
Partslist

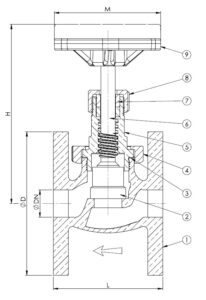

| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Bronze | CC491K (RG5) |
| 2 | Disc | Bronze | CC491K (RG5) |
| 3 | Gasket | PTFE | |
| 4 | Locking Nut | Bronze | CC491K (RG5) |
| 5 | Bonnet | Bronze | CC491K (RG5) |
| 6 | Stem | Special Brass | CW710R (SoMs59) |
| 7 | Gland | Brass | CW614N (Ms58) |
| 8 | Gland Nut | Brass | CW614N (Ms58) |
| 9 | Handwheel | Cast Iron | EN-JL1040 (GG25) |
Details
| DN | Pressure Rating | Connection | L |
|---|---|---|---|
| 20 | PN 16 | PN 16 | 80 |
| D | H | M | Kg |
|---|---|---|---|
| 105 | 110 | 80 | 2.1 |
