| Price View | Price Range |
|---|---|
| Product Group | 467064 |
| End Standard | EN 1092-1 |
| Face To Face Standard | EN 558, series 1 |
| Remark | Connection: PN40 |
| Max temperature | +300°C |
| Throughput Direction | Straight |
| Variant | SDSL |
| Pressure Rating | PN40 |
| End Type | Flanged |
| Design Code | EN 13709 |
| Standard | DIN |
| Application | Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea Water, Water |
| Size | 20 |
| Material Seat | Stainless Steel, 304 |
| Material Disc | Stainless Steel, 420 |
| Material Body | Cast Steel |
Globe Valve DN20 PN40
Straight type – SDSL
Details
Straight type, Cast Steel body, metal seated globe valve with rising stem and bolted bonnet. Raised face flanges.

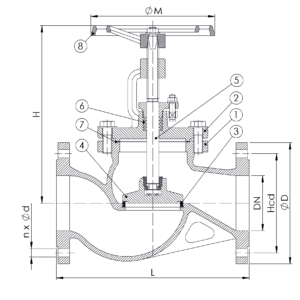

PARTSLIST AND DETAILS
Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Cast Iron | GG25 |
| 2 | Bonnet | Cast Iron | GG25 |
| 3 | Seat | Stainless Steel | 1.4301 |
| 4 | Disc | Stainless Steel | 1.4021 |
| 5 | Stem | Stainless Steel | 1.4021 |
| 6 | Gland packing | Graphite | |
| 7 | Gasket | Graphite | |
| 8 | Handwheel | Cast Iron | GG25 |
Details
| DN | Pressure Rating Id | nxdd | Hcd |
|---|---|---|---|
| 20 | 40 | 4×14 | 75 |
| ØD | L | Kg | H | ØM |
|---|---|---|---|---|
| 105 | 150 | 4.5 | 165 | 120 |
