| Price View | Price Range |
|---|---|
| Product Group | F-7352 |
| End Standard | JIS B2240 |
| Inspection Standard | JIS F7400 |
| Remark | Connection: JIS 5K |
| Throughput Direction | Angled |
| Variant | SDNR |
| Pressure Rating | JIS 5K |
| End Type | Flanged |
| Design Code | JIS F7302 |
| Standard | JIS |
| Application | Boiler feedwater, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea Water, Steam, Water |
| Size | 25 |
| Material Disc | Brass |
| Material Body | Bronze |

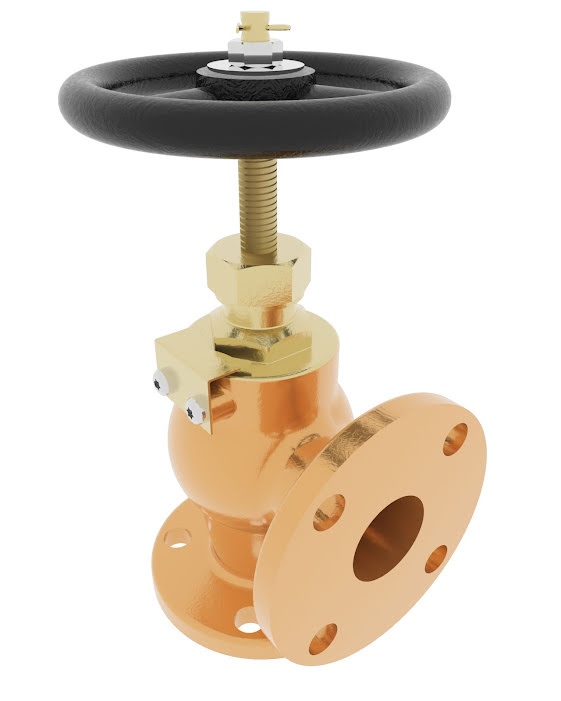

Globe Valve DN25 JIS 5K
Angled type – SDNR
Details

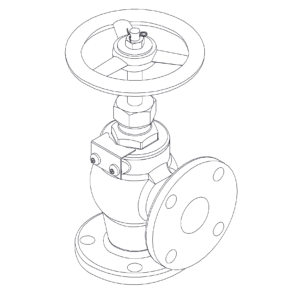

Angled type, RG5 body, metal seated globe valve with rising stem. Screwed and secured bonnet. Flat face flanges.
PARTSLIST AND DETAILS

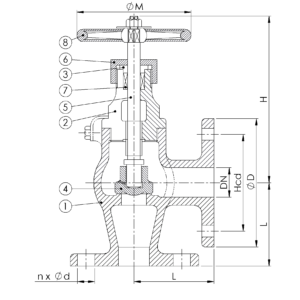

Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Bronze | BC 6 |
| 2 | Bonnet | Brass | C 3771 BE |
| 3 | Gland | Brass | C 3771 BE |
| 4 | Disc | Brass | C 3771 BE |
| 5 | Stem | Brass | C 3771 BE |
| 6 | Gland Nut | Brass | C 3771 BE |
| 7 | Packing | Graphite | |
| 8 | Handwheel | Cast Iron | FC 200 |
Details
| DN | Pressure Rating Id | nxdd | Hcd |
|---|---|---|---|
| 25 | 5 | 4×12 | 75 |
| ØD | L | Kg | H | ØM |
|---|---|---|---|---|
| 95 | 65 | 3.4 | 145 | 125 |
