| Price View | Price Range |
|---|---|
| Product Group | 456322 |
| End Standard | EN 1092-3 |
| Remark | Connection: PN16 |
| Min temperature | -10°C |
| Max temperature | +200°C |
| Throughput Direction | Straight |
| Variant | SDSL |
| Pressure Rating | PN16 |
| End Type | Flanged |
| Standard | DIN |
| Application | Boiler feedwater, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea Water, Steam, Water |
| Size | 25 |
| Material Disc | Bronze |
| Material Body | Bronze |

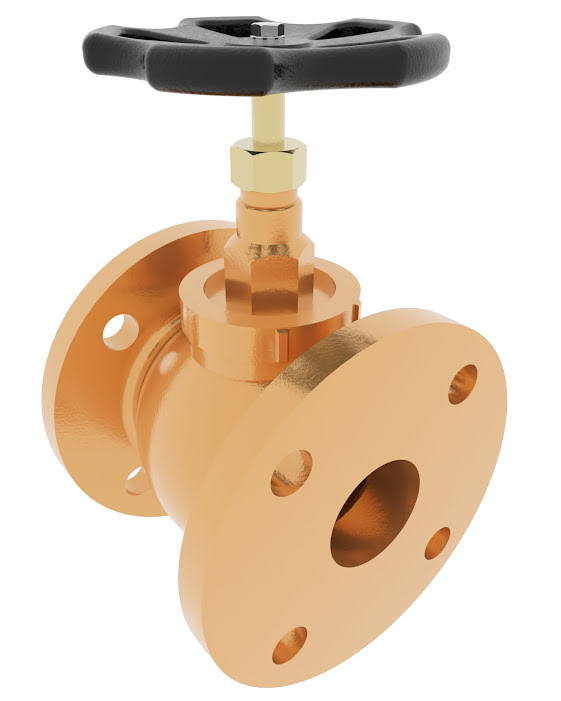

Globe Valve DN25 PN16
Straight type – SDSL
Details
Straight type, RG5 body, metal seated globe valve with rising stem. Screwed and secured bonnet. Flat face flanges.

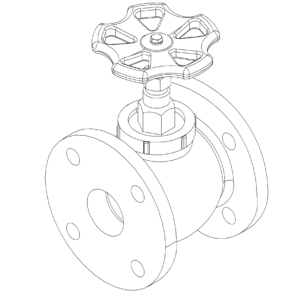

PARTSLIST AND DETAILS

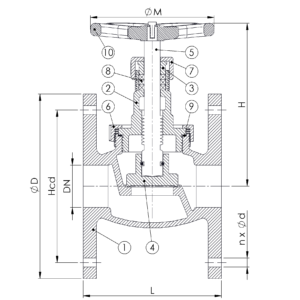

Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Bronze | RG5 |
| 2 | Bonnet | Bronze | RG5 |
| 3 | Gland | Brass | Ms58 |
| 4 | Disc | Bronze | RG5 |
| 5 | Stem | Special Brass | Som59 |
| 6 | Bonnet Nut | Bronze | RG5 |
| 7 | Gland Nut | Brass | Ms58 |
| 8 | Packing | Graphite | |
| 9 | Gasket | PTFE | |
| 10 | Handwheel | Cast Iron | GG25 |
Details
| DN | Pressure Rating Id | nxdd | Hcd |
|---|---|---|---|
| 25 | 16 | 4×14 | 85 |
| ØD | L | Kg | H | ØM |
|---|---|---|---|---|
| 115 | 90 | 3 | 124 | 80 |
