| Product Group | 457432 |
| End Standard | EN 1092-3 |
| Remark | Connection: PN16 |
| Throughput Direction | Straight |
| Variant | SDNR |
| Pressure Rating | PN16 |
| End Type | Flanged |
| Standard | DIN |
| Application | Boiler feedwater, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea Water, Steam, Water |
| Size | 25 |
| Material Disc | Bronze |
| Material Body | Bronze |

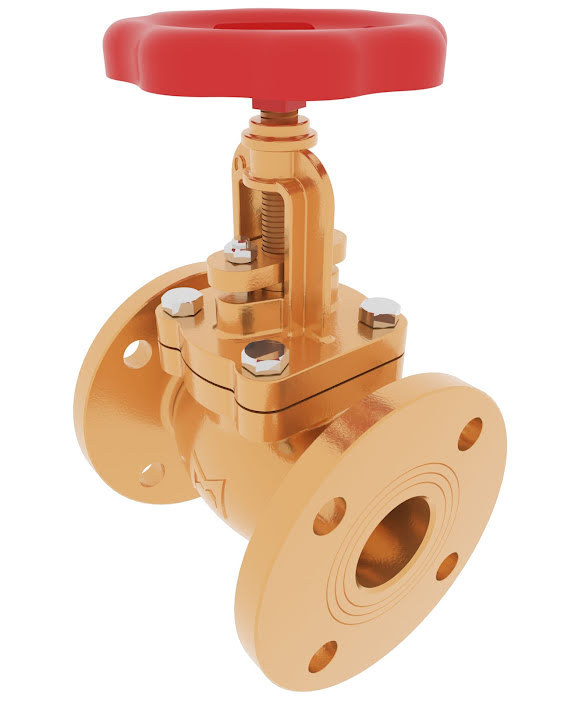

Globe Valve DN25 PN16
Straight type – SDNR
Details
Straight type, RG10 body, metal seated globe valve with rising stem. Bolted bonnet. Flat face flanges.

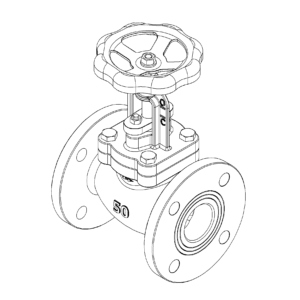

PARTSLIST AND DETAILS

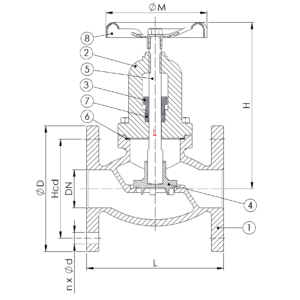

Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Bronze | CC 482K |
| 2 | Bonnet | Bronze | CC 482K |
| 3 | Gland | Bronze | CC 482K |
| 4 | Disc | Bronze | CC 481K |
| 5 | Stem | Aluminium Bronze | CC 333G |
| 6 | Gasket | Dixo 4000 | |
| 7 | Packing | Graphite | |
| 8 | Handwheel | Nodular Cast Iron | GGG40 |
Details
| DN | Pressure Rating Id | nxdd | Hcd |
|---|---|---|---|
| 25 | 16 | 4×14 | 85 |
| ØD | L | Kg | H | ØM |
|---|---|---|---|---|
| 115 | 120 | 3.8 | 155 | 100 |
