| Price View | Price Range |
|---|---|
| Product Group | 467052 |
| End Standard | EN 1092-2 |
| Face To Face Standard | EN 558, series 1 |
| Remark | Connection: PN16 |
| Throughput Direction | Straight |
| Variant | SDNR with spring |
| Pressure Rating | PN16 |
| End Type | Flanged |
| Design Code | DIN 86252 |
| Standard | DIN |
| Application | Cargo oil, Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea Water, Water |
| Size | 25 |
| Material Seat | Bronze |
| Material Disc | Bronze |
| Material Body | Cast Iron |

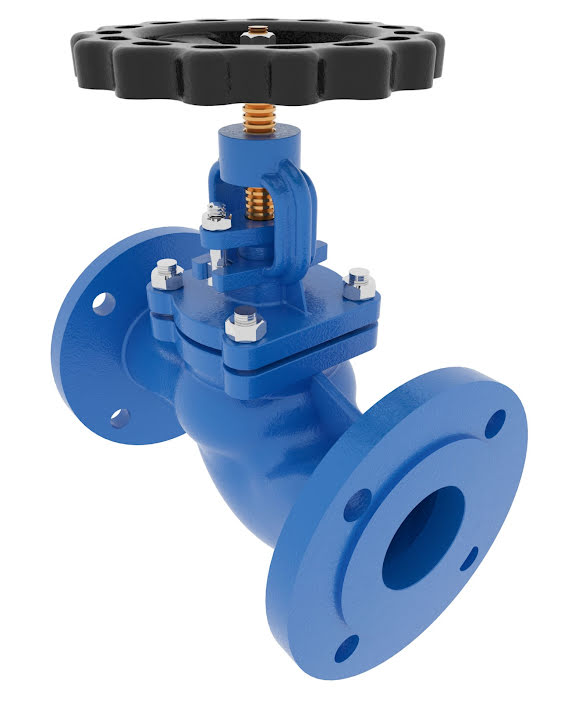

Globe Valve DN25 PN16
Straight type – SDNR with spring
Details
Straight type, Cast Iron body, metal seated globe valve with rising stem and bolted bonnet. Raised face flanges.
PARTSLIST AND DETAILS

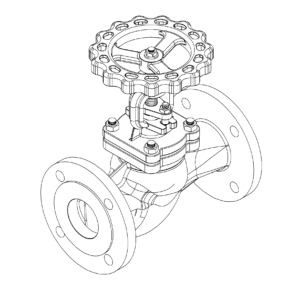

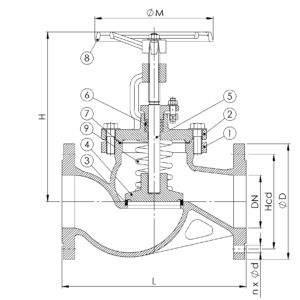

Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Cast Iron | GG25 |
| 2 | Bonnet | Cast Iron | GG25 |
| 3 | Seat | Bronze | RG5 |
| 4 | Disc | Bronze | RG5 |
| 5 | Stem | Special Brass | Som59 |
| 6 | Gland packing | Graphite | |
| 7 | Gasket | Graphite | |
| 8 | Handwheel | Cast Iron | GG25 |
Details
| DN | Pressure Rating Id | nxdd | Hcd |
|---|---|---|---|
| 25 | 16 | 4×14 | 85 |
| ØD | L | Kg | H | ØM |
|---|---|---|---|---|
| 115 | 160 | 5 | 175 | 140 |
