| Price View | Price Range |
|---|---|
| Product Group | 458822 |
| End Standard | EN 1092-3 |
| Execution | Straight |
| Variant | SDNR |
| Pressure Rating | PN16 |
| End Type | Flanged |
| Bonnet Connection | Bolted |
| Working Pressure | Max. 10 bar up to 225°C (steam up to 180°C), Max. 16 bar (up to 120°C) |
| Standard | DIN |
| Remark | For temperatures up to 225°C, steam up to 180°C |
| Application | Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea Water, Steam, Water |
| Size | 32 |
| Material Disc | Special Brass |
| Material Body | Bronze |
Globe Valve DN32 PN16
Straight Type, Flanged Connection – SDNR Disc
Details
Globe valve with shut off , regulating or screw down non return (SDNR) function. Straight, rising stem valve with bolted bonnet and metal sealing. For warm sea water it is recommended to use a stem of zinc free bronze, CuSn6.

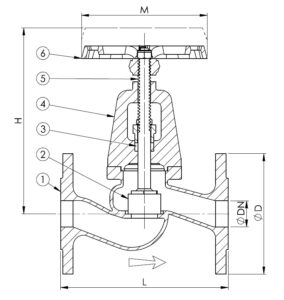

PARTSLIST AND DETAILS
Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Bronze | CC491K (RG5) |
| 2 | Disc | Special Brass | CW710R (SoMs59) |
| 3 | Gasket | Rubber/PTFE fiber composite | |
| 4 | Bonnet | Bronze | CC491K (RG5) |
| 5 | Stem | Special Brass | CW710R (SoMs59) |
| 6 | Handwheel | Cast Iron | EN-JL1040 (GG25) |
Details
| DN | Pressure Rating | Connection | L |
|---|---|---|---|
| 32 | PN 16 | PN 16 | 180 |
| D | H | M | Kg |
|---|---|---|---|
| 140 | 220 | 125 | 8.0 |
