| Price View | Price Range |
|---|---|
| Product Group | 459522 |
| End Standard | EN 1092-3 |
| Execution | Angled |
| Pressure Rating | PN16 |
| End Type | Flanged |
| Bonnet Connection | Screwed, Secured |
| Working Pressure | Max. 10 bar up to 225°C (steam up to 180°C), Max. 16 bar (up to 120°C) |
| Standard | DIN |
| Remark | For temperatures up to 225°C, steam up to 180°C |
| Application | Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea Water, Steam, Water |
| Size | 32 |
| Material Disc | Bronze |
| Material Body | Bronze |
Globe Valve DN32 PN16
Angled Type, Flanged Connection – Stop Valve
Details
Globe valve with shut off or screw down non return (SDNR) function. Angled, rising stem valve with screwed and secured bonnet as well as metal sealing. For warm sea water it is recommended to use a stem of zinc free bronze, CuSn6.

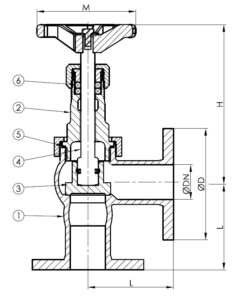

PARTSLIST AND DETAILS
Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Bronze | CC491K (RG5) |
| 2 | Bonnet | Bronze | CC491K (RG5) |
| 3 | Disc | Bronze | CC491K (RG5) |
| 4 | Stem | Special Brass | CW710R (SoMs59) |
| 5 | Gasket | PTFE | |
| 6 | Gland | Brass | CW614N (Ms58) |
Details
| DN | Pressure Rating | Connection | L |
|---|---|---|---|
| 32 | PN 16 | PN 16 | 90 |
| D | H | M | Kg |
|---|---|---|---|
| 140 | 120 | 60 | 4.2 |
