| Price View | Price Range |
|---|---|
| Product Group | F-7473 |
| End Standard | JIS B2220 |
| Inspection Standard | JIS F7400 |
| Remark | Connection: JIS 20K |
| Throughput Direction | Straight |
| Variant | SDNR |
| Pressure Rating | JIS 20K |
| End Type | Flanged |
| Design Code | JIS F7313 |
| Standard | JIS |
| Application | Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Water |
| Size | 50 |
| Material Seat | Stainless Steel, 420 |
| Material Disc | Stainless Steel, 420 |
| Material Body | Cast Steel |

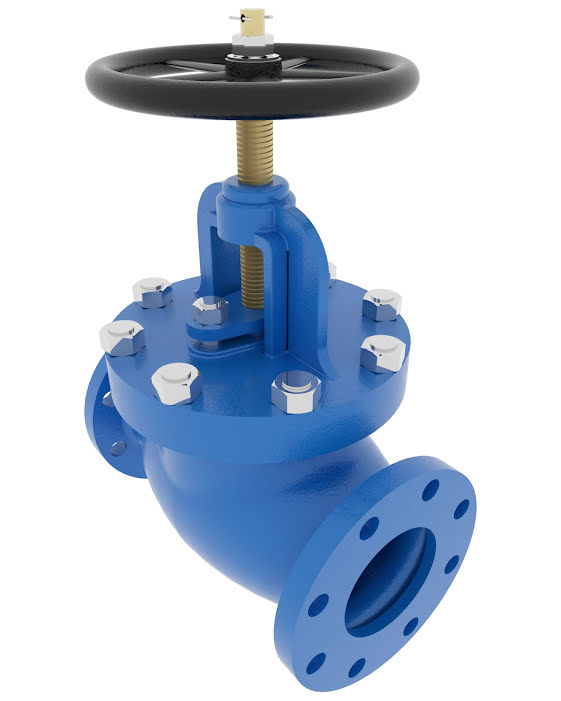

Globe Valve DN50 JIS 20K
Straight type – SDNR
Details
Straight type, Cast Steel body, metal seated globe valve with rising stem. Bolted bonnet. Flat face flanges.

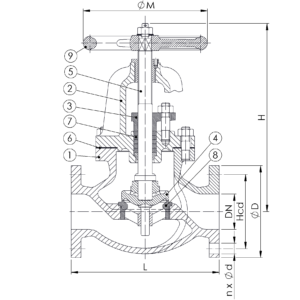

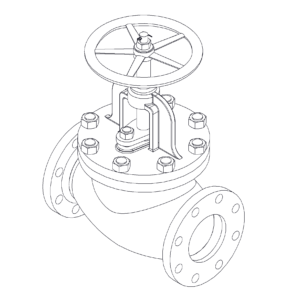

PARTSLIST AND DETAILS
Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Cast Steel | ZG230-450 |
| 2 | Bonnet | Cast Steel | ZG230-450 |
| 3 | Gland | Stainless Steel | 2Cr13 |
| 4 | Disc | Stainless Steel | 2Cr13 |
| 5 | Stem | Stainless Steel | 2Cr13 |
| 6 | Gasket | Graphite | |
| 7 | Packing | Graphite | |
| 8 | Sealing ring | Stainless Steel | 2Cr13 |
| 9 | Handwheel | Cast Iron | HT200 |
Details
| DN | Pressure Rating Id | nxdd | Hcd |
|---|---|---|---|
| 50 | 20 | 8×19 | 120 |
| ØD | L | Kg | H | ØM |
|---|---|---|---|---|
| 155 | 230 | 21.6 | 305 | 200 |
