| Price View | Price Range |
|---|---|
| Product Group | 467052 |
| End Standard | EN 1092-2 |
| Face To Face Standard | EN 558, series 1 |
| Remark | Connection: PN16 |
| Throughput Direction | Straight |
| Variant | SDSL |
| Pressure Rating | PN16 |
| End Type | Flanged |
| Design Code | DIN 86251 |
| Standard | DIN |
| Application | Cargo oil, Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea Water, Water |
| Size | 50 |
| Material Seat | Stainless Steel, 304 |
| Material Disc | Stainless Steel, 420 |
| Material Body | Cast Iron |

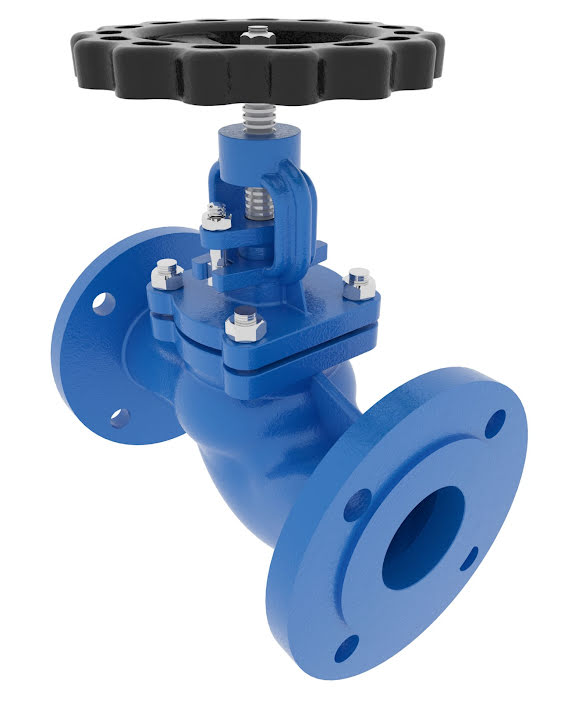

Globe Valve DN50 PN16
Straight type – SDSL
Details
Straight type, Cast Iron body, metal seated globe valve with rising stem and bolted bonnet. Raised face flanges.
PARTSLIST AND DETAILS

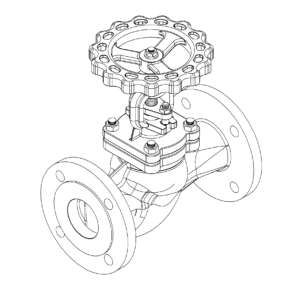

Partslist
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Cast Iron | GG25 |
| 2 | Bonnet | Cast Iron | GG25 |
| 3 | Seat | Stainless Steel | 1.4301 |
| 4 | Disc | Stainless Steel | 1.4021 |
| 5 | Stem | Stainless Steel | 1.4021 |
| 6 | Gland packing | Graphite | |
| 7 | Gasket | Graphite | |
| 8 | Handwheel | Cast Iron | GG25 |
Details

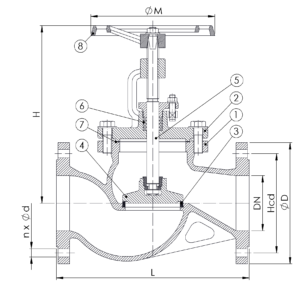

| DN | Pressure Rating Id | nxdd | Hcd |
|---|---|---|---|
| 50 | 16 | 4×19 | 125 |
| ØD | L | Kg | H | ØM |
|---|---|---|---|---|
| 165 | 230 | 13 | 230 | 160 |
